Screen Navigation

NOTE: Although information appears similar on competitive displays, the navigational steps are often different. Refer to the operator's manual for your display for specific instructions.

Main Menu

Buttons and Softkeys appear similar. Buttons simply activate a feature or transfer to a new screen. Softkeys open screens where set up and data entry are possible.

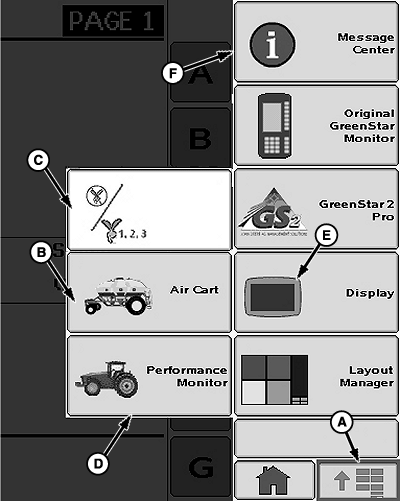

The primary Menu (A) button activates a screen with selectable buttons for each monitor function.

Selecting a button transfers to a screen with a particular monitor function. The following are a few examples.

  • (B) Opens Cart Functions page. Use these functions to set up and observe cart and tool activities.
  • (C) Opens Blockage Functions page. Use these functions to set up and observe tool blockage activities.
  • (D) Opens Performance Monitor Totals page. Various performance functions are available.
  • (E) Opens Display Main page. Various monitor display functions are available.
  • (F) Opens Message Center page. Various message functions are available.

The following screen area information is for translation purposes. This area assists an operator using a screen with English text when the operator does not read English. The left side of the list remains English to match the screen. The right side of the list is translated along with the rest of the manual. The operator matches the English words on screen with a listed item and views the translated meaning.

Screen Area Information

Air Cart Air Cart Performance Monitor Performance Monitor Message Center Message Center Original GreenStar Monitor Original GreenStar Monitor GreenStar 2 Pro GreenStar 2 Pro
A59669

Menu Buttons


A-Menu
B-Cart Functions Button
C-Blockage Functions Button
D-Performance Monitor Button
E-Display Button
F-Message Center Button

OUO6074,0000FD2 -19-29MAY09-1/7

Layout Manager Layout Manager Display Display

OUO6074,0000FD2 -19-29MAY09-2/7

Cart Functions

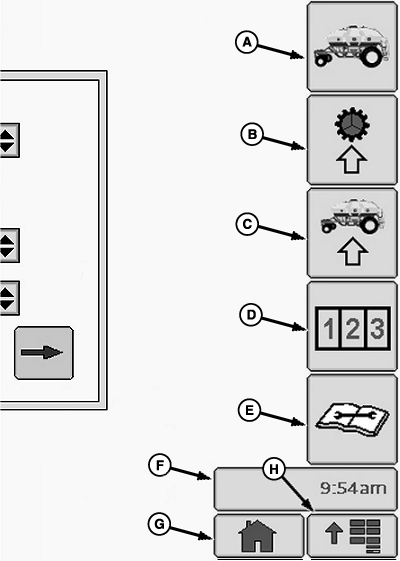

Select Softkeys (A) through (E) to transfer to various cart screens. A title at the top of each screen matches the name of the softkey.

Once any cart screen is displayed, it is not necessary to return to the primary menu before another cart softkey is selected. Example: If a procedure indicates to select the primary Menu button (H) then the Configuration softkey (C) and the current screen title is Air Cart Meters, simply select the Configuration softkey.

  • (A) Transfers to Main cart screen, often referred to as the Run page.
  • (B) Transfers to meter screen for meter setup and calculations.
  • (C) Transfers to configuration screen for cart, tool, and sensor configuration.
  • (D) Transfers to screen with operating totals.
  • (E) Transfers to Diagnostics and Test screen.
  • (F) Transfers to Message Center.
  • (G) Transfers to Home screen.
  • (H) Transfers to primary Menu screen with buttons for different functions.


A-Main Softkey
B-Meters Softkey
C-Configuration Softkey
D-Totals Softkey
E-Diagnostics Softkey
F-Message Center Button
G-Home Button
H-Menu Button

A59642

OUO6074,0000FD2 -19-29MAY09-3/7

Blockage Functions

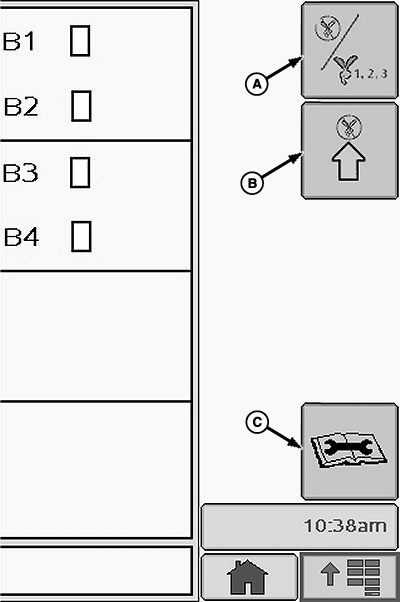

Select Softkeys (A) through (C) to transfer to various blockage screens. A title at the top of each screen matches the name of the softkey.

Once any blockage screen is displayed, it is not necessary to return to the primary menu before another blockage softkey is selected.

  • (A) Transfers to blockage run screen.
  • (B) Transfers to Blockage Setup screen.
  • (C) Transfers to Blockage Diagnostics screen.
A62190

OUO6074,0000FD2 -19-29MAY09-4/7

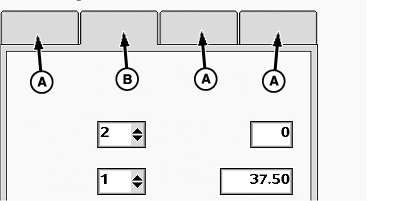

Functional Tabs

Select Tabs to activate various options on a screen.


A-Inactive Tab
B-Active Tab

A59328

OUO6074,0000FD2 -19-29MAY09-5/7

Navigation Example A:

Follow along with an active monitor to become familiar with the display.

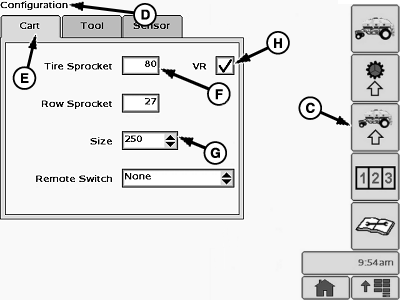

1. Select primary Menu button (A).

2. Select Cart Application button (B).

3. Select cart Configure softkey (C). Configuration (D) screen title is now displayed.

4. Select Cart tab (E).

5. Select Tire Sprocket input box (F) and enter the tooth count on tire sprocket.

6. Select Size drop down box (G) and choose the size of this cart.

7. If cart is equipped with variable rate meters, select VR check box (H) and mark with a check.

Screen Area Information

Cart Cart Configuration Configuration Tire Sprocket Tire Sprocket Size Size VR Variable Rate


A-Menu Button
B-Cart Application Button
C-Cart Configure Softkey
D-Configuration Screen
E-Cart Tab
F-Tire Sprocket Input Box
G-Cart Size Drop-Down Box
H-Variable Rate Check Box

A59670
A59643

OUO6074,0000FD2 -19-29MAY09-6/7

Navigation Example B:

All procedures in this manual use a condensed version of Navigation Example A shown on previous page. The following steps are an example of the same procedure, simplified. Each bold word is a selectable screen item. The arrows >> indicate each screen item to select in sequence. Once common buttons, softkeys, and screen titles become familiar, this technique shortens the reading time required to accomplish a task. It is not necessary to begin at the primary Menu if the display is already on the function screen required.

Follow along with an active monitor to become familiar with the display. If needed, refer back to previous descriptions in this section while learning screen items.

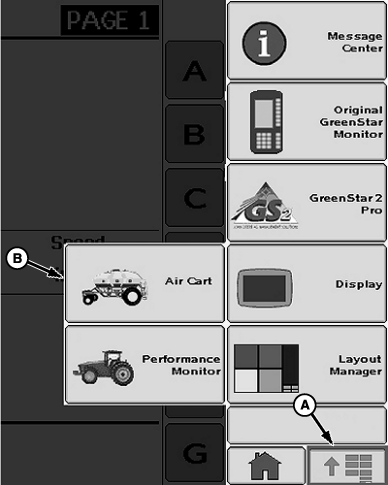

1. Select primary Menu button >> Air Cart button >> Configuration softkey >> Cart tab.

2. Select Tire Sprocket input box and enter the tooth count on tire sprocket.

3. Select the size of this cart from Size drop down box.

4. If cart is equipped with variable rate meters, select VR check box and mark with a check.

Screen Area Information

Cart Cart Configuration Configuration Tire Sprocket Tire Sprocket Size Size VR Variable Rate
A59671

Air Cart Button

A59325

Primary Menu Button

A59672

Configuration Softkey
