Configure Custom Seeding Tool

IMPORTANT: All individual entries selected for a model are returned to default values once another model is selected from the Model drop down.

1. Select primary Menu button >> Air Cart button >> Configuration softkey >> Tool tab.

2. Select the Model drop down box and choose a Custom option.

3. Select and check DS check box if operating cart as double shoot. Select and clear DS check box if operating cart as single shoot.

4. Select the Row Spacing input boxes and enter the seeding tool row spacing for each rank.

5. Select Next Page button.

Screen Area Information

Air Cart Air Cart Configuration Configuration Cart Cart Tool Tool Model Model Custom Custom DS Double Shoot Front Row Spacing Front Row Spacing Middle Row Spacing Middle Row Spacing Rear Row Spacing Rear Row Spacing Adj. Width Adjust Width ft. feet m meter in inch mm millimeter
A59671

Air Cart Button

A59325

Primary Menu Button

A59672

Configuration Softkey

A62277

Next Page Button

OUO6074,0000FD6 -19-21JUL08-1/3

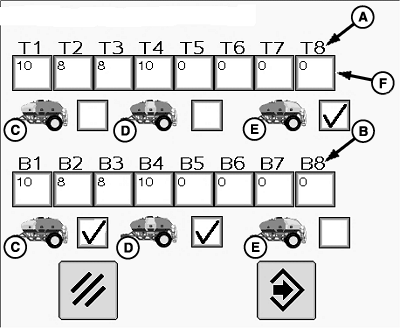

A59824
A61919

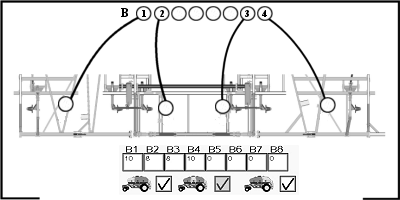

Single Shoot Example


A-Top Primaries
B-Bottom Primaries
C-Front Tank
D-Middle Tank
E-Rear Tank
F-Input Box

1. Refer to meter cartridge and seeding tool diagrams in seeding tool operator's manual to identify how many rows are connected to each primary. The tool in this example has four primary towers connected to top shoot and four connected to bottom shoot. The primary numbers represent tower placement. The values entered are for the number of secondaries.

IMPORTANT: System performs best if lightest product is in front tank and heaviest product is in rear tank.

NOTE: Both top and bottom primaries appear for double shoot. Only bottom primaries appear for single shoot.

NOTE: Smaller air carts only offer front and rear tank selection.

2. Select and check the front (C), middle (D), and rear (E) tank check boxes to indicate which tanks feed top (A) and bottom (B) primaries.

3. Select each primary input box (F) and enter the number of rows connected to that primary tower.

4. Select Enter button to lock the values.

Select Clear button to return to previous screen without saving any changed values.

A61854

Double Shoot Example

A61855

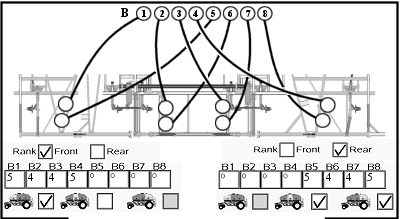

Dual Row Spacing Example

OUO6074,0000FD6 -19-21JUL08-2/3

5. When enter button is selected on Rows Per Primary screen, the monitor calculates machine width based on row spacing and number of rows on towers.

6. If an operator intends to overlap onto previous pass, select Adj. Width input box and decrease width of tool by amount of intended overlap.

Screen Area Information

Rows Per Primary Rows Per Primary T Top B Bottom Front Front Rear Rear

OUO6074,0000FD6 -19-21JUL08-3/3
