Warning Messages

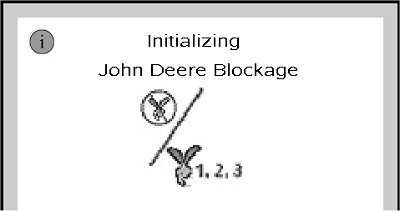

This screen appears upon system start up.

Initializing John Deere ™ Blockage

John Deere is a trademark of Deere & Company

OUO6074,000109C -19-22FEB08-1/14

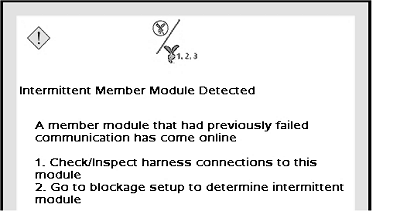

This screen indicates an intermittent signal from a module.

Intermittent Member Module Detected

A member module that had previously failed communication has come online.

1. Check or inspect harness connections to this module.
2. Go to blockage setup screen to determine intermittent module number.

OUO6074,000109C -19-22FEB08-2/14

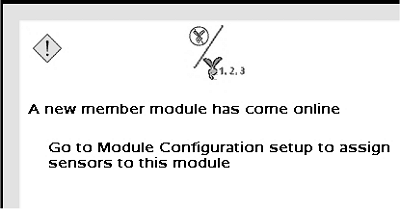

This screen indicates a new module is detected on the system.

A new member module has come online.

Go to module configuration setup to assign sensors to this module.

OUO6074,000109C -19-22FEB08-3/14

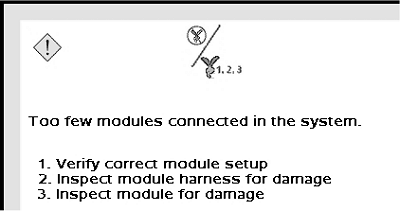

To few modules connected in the system.

1. Verify correct module setup.
2. Inspect module harness for damage.
3. Inspect module for damage.

OUO6074,000109C -19-22FEB08-4/14

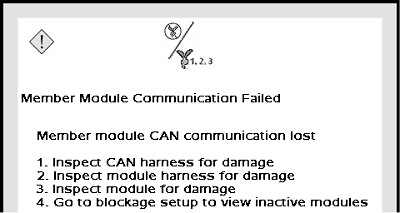

Member Module Communication Failed

Member module CAN communication lost.

1. Inspect CAN harness for damage.
2. Inspect module harness for damage.
3. Inspect module for damage.
4. Go to blockage setup to view inactive modules.

OUO6074,000109C -19-22FEB08-5/14

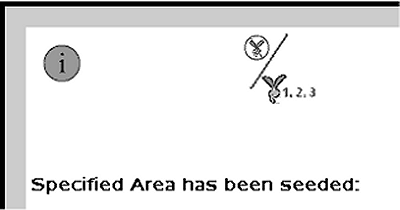

This screen appears when the Area Countdown feature reaches zero.

Specified area has been seeded.

OUO6074,000109C -19-22FEB08-6/14

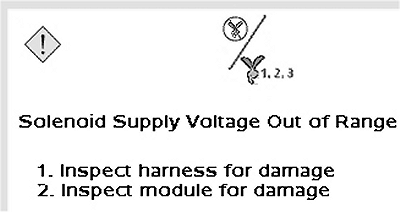

Solenoid Supply Voltage Out of Range.

1. Inspect harness for damage.
2. Inspect module for damage.

OUO6074,000109C -19-22FEB08-7/14

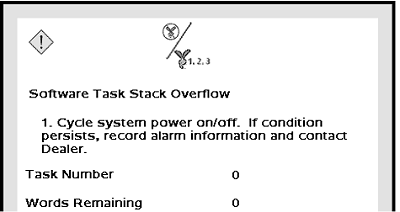

Software Task Stack Overflow.

Cycle system power on and off. If condition persists, record alarm information and contact your John Deere™ dealer.

Task Number

Words Remaining

OUO6074,000109C -19-22FEB08-8/14

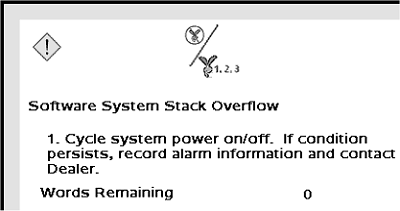

Software System Stack Overflow.

Cycle system power on and off. If condition persists, record alarm information and contact your John Deere™ dealer.

Words Remaining

OUO6074,000109C -19-22FEB08-9/14

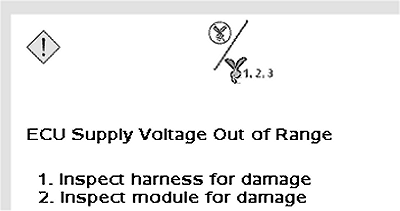

Electronic Control Unit Supply Voltage Out of Range.

1. Inspect harness for damage.
2. Inspect module for damage.

OUO6074,000109C -19-22FEB08-10/14

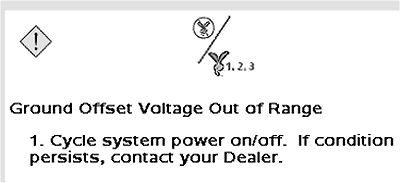

Ground Offset Voltage Out of Range.

Cycle system power on and off. If condition persists, contact your John Deere™ dealer.

OUO6074,000109C -19-22FEB08-11/14

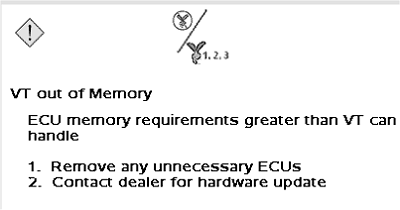

VT out of Memory.

ECU memory requirements greater than VT can handle.

1. Remove any unnecessary Electronic Control Units.
2. Contact dealer for hardware update.

OUO6074,000109C -19-22FEB08-12/14

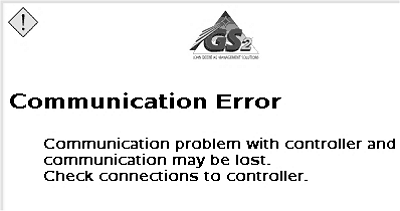

Communication Error

Communication problem with controller and communication may be lost. Check connections to controller.

OUO6074,000109C -19-22FEB08-13/14

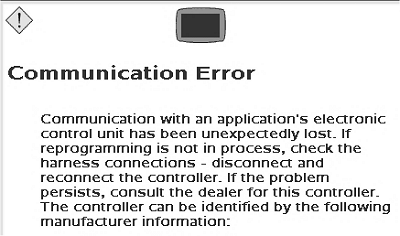

Communication Error

Communication with an application's electronic control unit has been unexpectedly lost. If reprogramming is not in progress, check the harness connections then disconnect and connect the controller. If the problem persists, consult the dealer for this controller. The controller can be identified by the following manufacturer information.

OUO6074,000109C -19-22FEB08-14/14
