Position Drawbar |
|
| Drawbar Road Transport Position | Drawbar Field Position with Tow Between Cart | Drawbar Field Position with Tow Behind Cart | Drawbar Length with Tow Between Cart | Drawbar Length with Tow Behind Cart | Drawbar Height | |
|---|---|---|---|---|---|---|

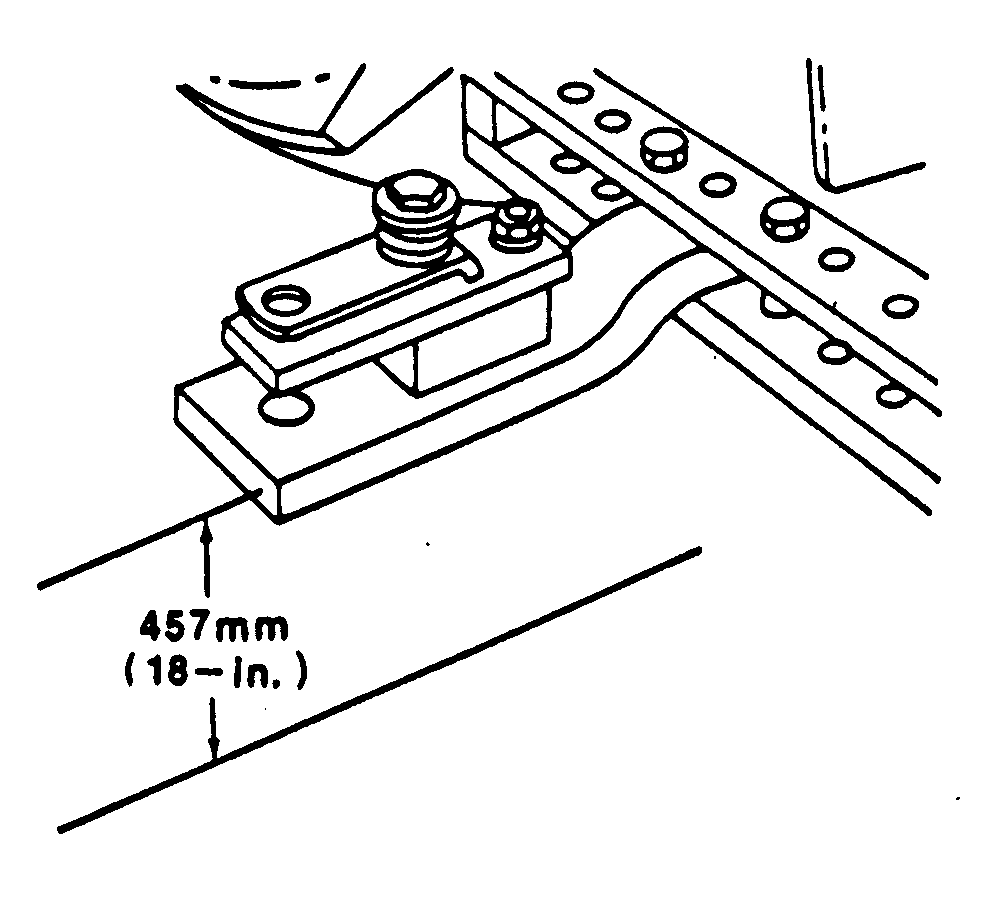

| Four Wheel Drive Wheel Tractors and Track Tractors | Fixed Center | Fixed Center | One hole clearance on each side. | Short | Long | 457 mm (18 in.) from ground to top of drawbar. |
| All Other Tractors | Fixed Center | Fixed Center | Fixed Center | Short | Long | 457 mm (18 in.) from ground to top of drawbar. |
|
1. Position drawbar according to information in table. 2. Verify clevis assembly (if equipped) is installed on top of drawbar. 3. Tighten clevis assembly bolts according to specifications. (See your tractor Operator's Manual for specifications.) |
CAUTION:
Avoid personal injury or death due to loss of steering. Always pin drawbar in center position on all tractors when transporting machine.
OUO6076,00001A0 -19-03JUN09-1/1 |
