Tow-Behind Field Hitch
|
|
|
|
|
|
Field hitch is factory assembled for shortest length. Hitch tube length is adjustable to provide clearance for rear bar attachments, such as press wheels and harrow. Some applications require tubes be set to mid-length or long-length positions. Hitch frame extension is required in mid length and long length positions. |
OUO6076,0000207 -19-05JUN09-1/3 |

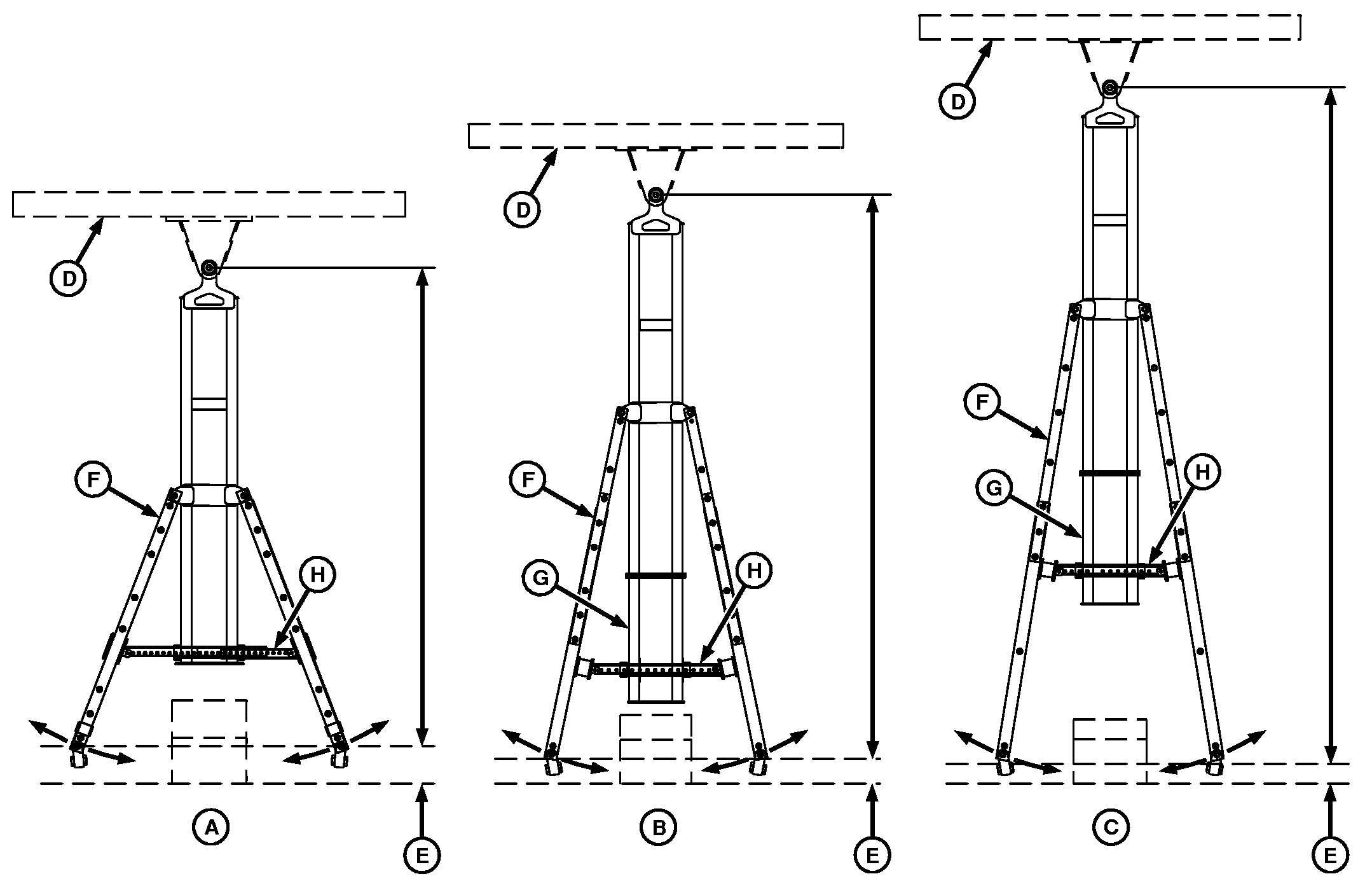

| Hitch Tube Settings-Tow-Behind | ||||
|---|---|---|---|---|
| Tillage Model | Hitch Tube Setting | Hitch Frame Extension | Minimum Hitch Length mm (in.) | Maximum Hitch Length mm (in.) |
| 1690/1850/1860/1870/1890/1895 1810 w/o Attachments |
Short Length | No | 3402 (134) | 3670 (145) |
| 737 735/1810 w/ Attachments 1840 with Khart Packers 1830/1835 with Dual Air Cart Casters |
Mid-Length | Yes | 4196 (165) | 4383 (173) |
| 1820/1840 w/240 Harrow 1830/1835 with Single Air Cart Casters |
Long Length | Yes | 4945 (195) | 5089 (200) |
|
Cross-support adjustment is required for all installations, regardless of tube length settings. Cross-support must be relocated to frame extension when mid-length or long-length settings are used. |
Storage stands may need to be relocated closer to tube ends to support hitch when disconnected from tool. |
OUO6076,0000207 -19-05JUN09-2/3 |
|

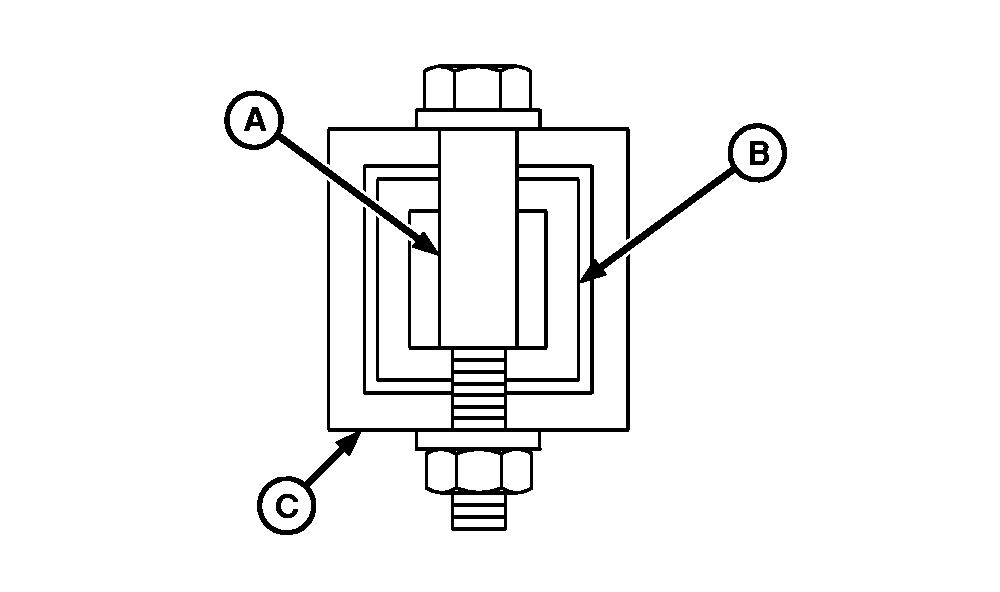

When moving hitch tube to mid-length or long-length position, assemble hitch tube hardware as shown.
|
|
OUO6076,0000207 -19-05JUN09-3/3 |
