Adjust Agitator Shaft Action

Rocking action of the agitator shaft (A) can be made more or less aggressive by changing drive arm position.

· LOW SETTING (Less Agitation)-Attach drive arm (B) to inner sprocket hole (D) for short position and less agitation. Low setting is used for most products except barley, oats, and forage crops.

· HIGH SETTING (More Agitation)-Attach drive arm to outer hole (C) for long position and more aggressive agitation. High setting is used for barley, oats, and forage crops.

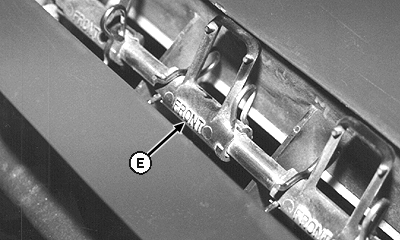

Product agitators (E) are installed only at the active runs to prevent bridging and to keep product free flowing. (See ACTIVE METER GUIDE in this section for illustration.)

A-Agitator Shaft
B-Drive Arm
C-Outer Sprocket Hole
D-Inner Sprocket Hole
E-Agitator

OUO6435,000022E -19-10JUN09-1/1
