Set Distance Calibration

IMPORTANT: Distance calibration is important. Population readings, area calculations, and ground speeds are just some factors dependent upon distance calibration value. Calibration procedure must be performed under actual field planting conditions to account for wheel slippage and other factors. If calibration procedure is performed on a hard flat surface instead of under field conditions, every reading using the calibration number for calculation purposes can be in error.

A49593-UN-26JUL02

A49594-UN-03SEP02

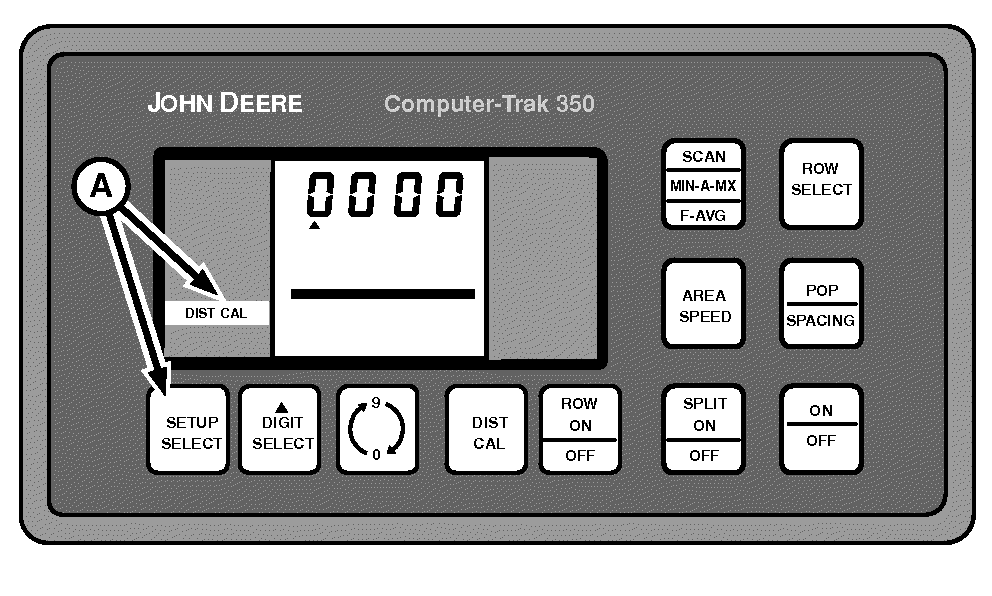

A - SETUP SELECT Switch

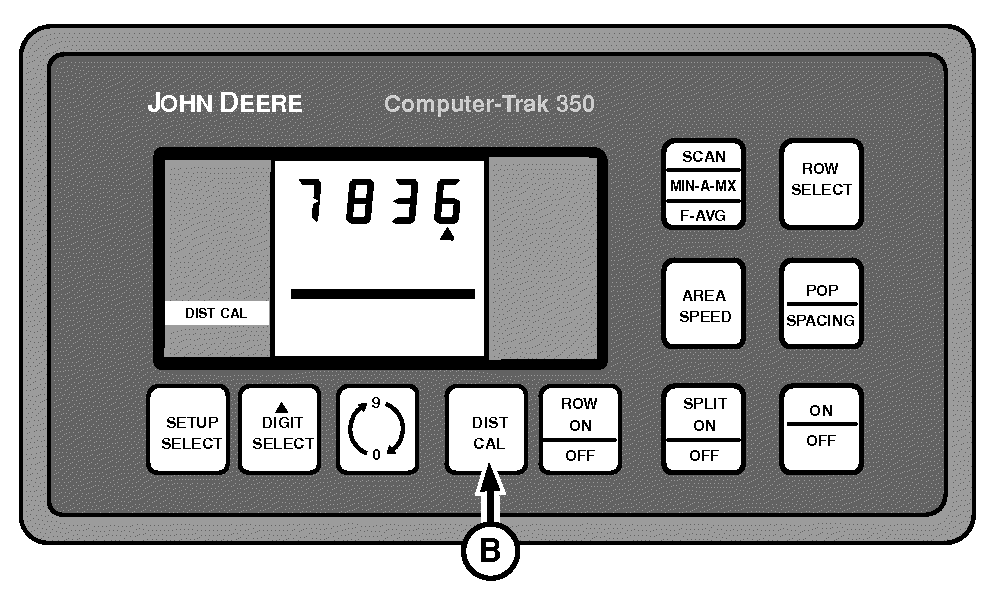

B - DIST CAL Switch

1. Press SETUP SELECT switch (A) until DIST CAL is displayed in left-hand column.

2. Mark a straight 121.9 m (400 ft.) course in the field.

3. While driving at expected planting speed, press the DIST CAL switch (B) exactly when passing start marker on the course. Display resets to zero and begins counting pulses. Press DIST CAL switch again, exactly when passing the end marker.

   The display must show approximately 7836.

   NOTE: The calibration value must be between 300 and 9999 or the monitor can be forced into a FORCED SETUP STATE. The monitor cannot acknowledge other selections until a proper value has been entered.

   7836 is a theoretical number and different field conditions can produce a slightly different result. A calculation number can be manually input into the console by using the DIGIT SELECT and 0-9 switches, but the most accurate population, area and speed data must be obtained using the 121.9 m (400 ft.) course method.

Tractors Equipped with a Performance Monitor Only

The radar for the tractor performance monitor and the radar for the 350 monitor produce the same output pulses. If each radar is connected independently to the monitor, both must be calibrated independently.

NOTE: The calibration value for the tractor performance monitor can NOT be the same as the planter monitor value.

When both monitors are connected to a single radar, it is not necessary to calibrate both monitors over a 121.9 m (400 ft.) course. If the tractor monitor is calibrated in the field on a 121.9 m (400 ft.) course, multiply calibration number by 1.365 and enter the result into the planter monitor (see tractor OM for calibration procedure). If the planter monitor is calibrated in the field on the 121.9 m (400 ft.) course, multiply calibration number by 0.733 and enter the result into the tractor monitor (see tractor OM for procedure). They must yield nearly identical speed readings from both tractor display and 350 monitor display.

Example: When using one radar unit with two monitors
Tractor Monitor used for calibration on 121.9 m (400 ft.) course	A calibrated tractor value of 5800 x 1.365 = 7917 to be manually entered into 350 monitor
350 Monitor used for calibration on 121.9 m (400 ft.) course	A calibrated value of 7900 x 0.733 = 5790 to be manually entered into tractor monitor
