Speed Set Mode

IMPORTANT: Speed Set Mode is only required if radar input has failed.

A49616
A49616-UN-26JUL02

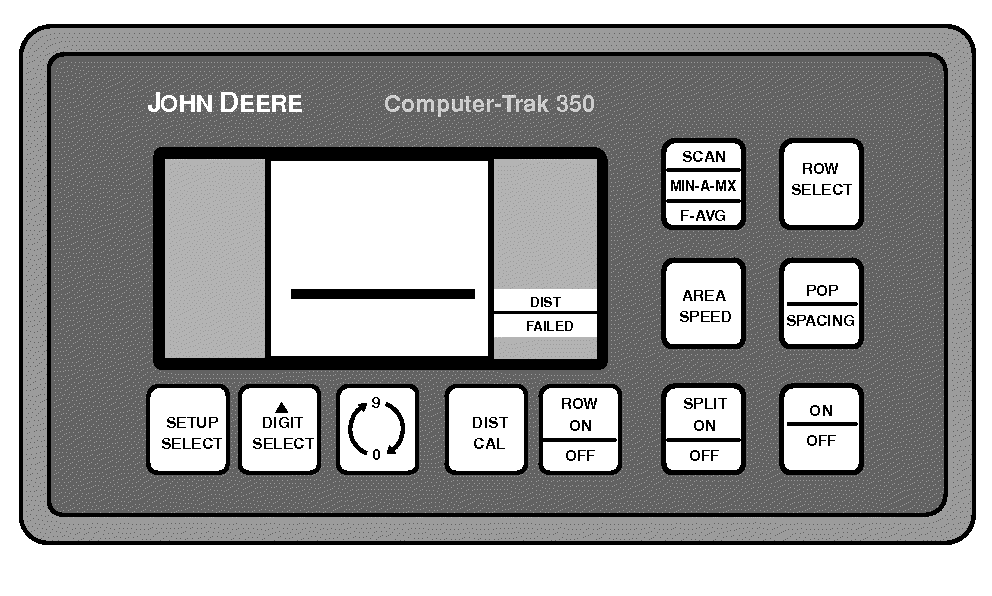

If a DIST FAILED message occurs and the problem cannot be fixed, a set speed can be entered to allow continued monitoring of seed flow. Fast Average, Area, and Speed readouts will not be available while operating in this mode. Row Failed messages occurs when seed counts drop below two seeds per second. Hi and Low population warning messages are deactivated in this mode.

In this mode, even though actual populations can remain accurate at slower and faster speeds, the monitor is going to show fluctuating populations because it assumes that the machine is traveling at a constant speed. Displayed population can only be close to actual population when actual ground speed matches set speed.

Speed Set Mode is deactivated each time monitor is powered off.

  1. NOTE: Speed Set Mode is deactivated each time monitor is powered off.

    A52103
    A52103-UN-27MAR03

    A52104
    A52104-UN-27MAR03

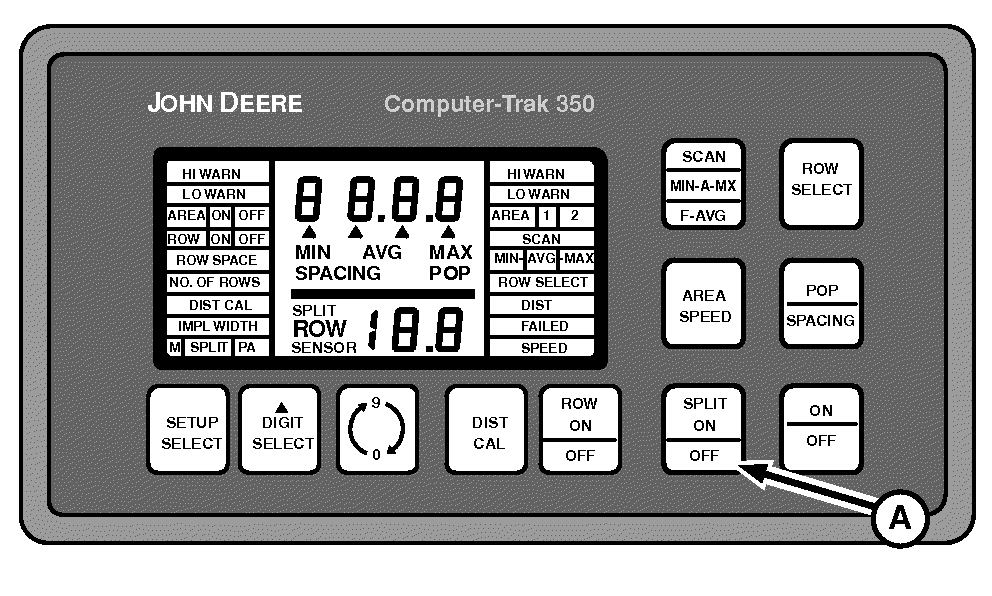

    A - SPLIT ON-OFF Switch

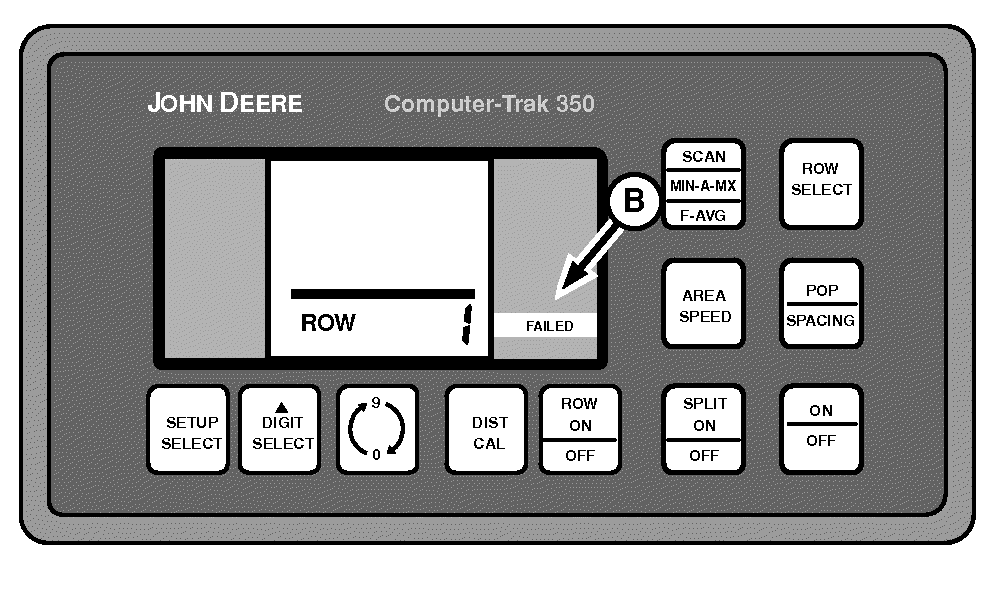

    B - ROW FAILED Screen

    To enter Speed Set Mode, hold SPLIT ON-OFF switch (A) while turning monitor on. A full display screen is displayed for a few seconds and then the ROW FAILED screen (B) is displayed.


  2. A49619
    A49619-UN-26JUL02

    A52105
    A52105-UN-27MAR03

    A - SETUP SELECT Switch

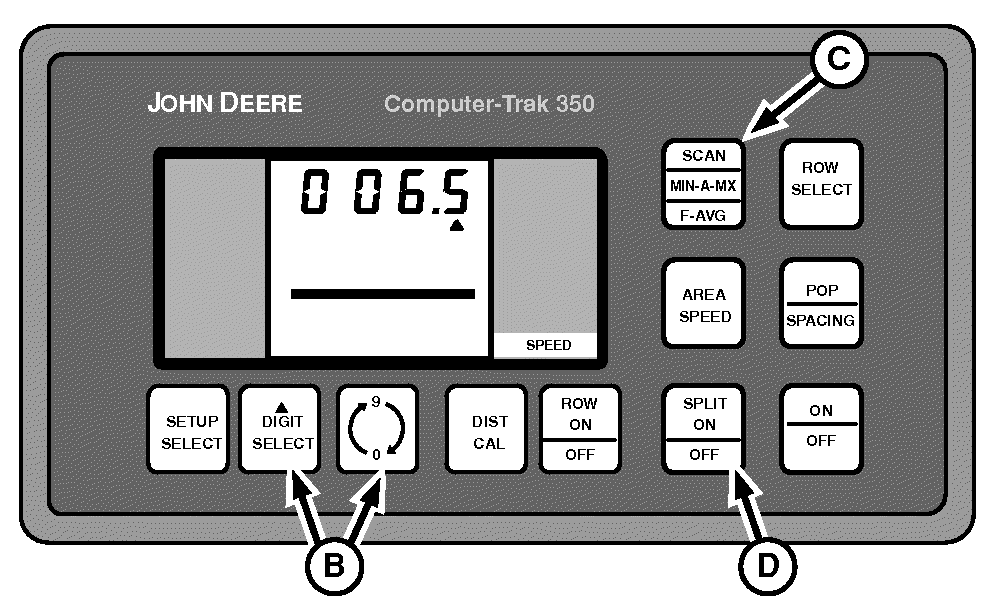

    B - DIGIT SELECT and 0-9 Switches

    C - SCAN Switch

    D - SPLIT ON-OFF Switch

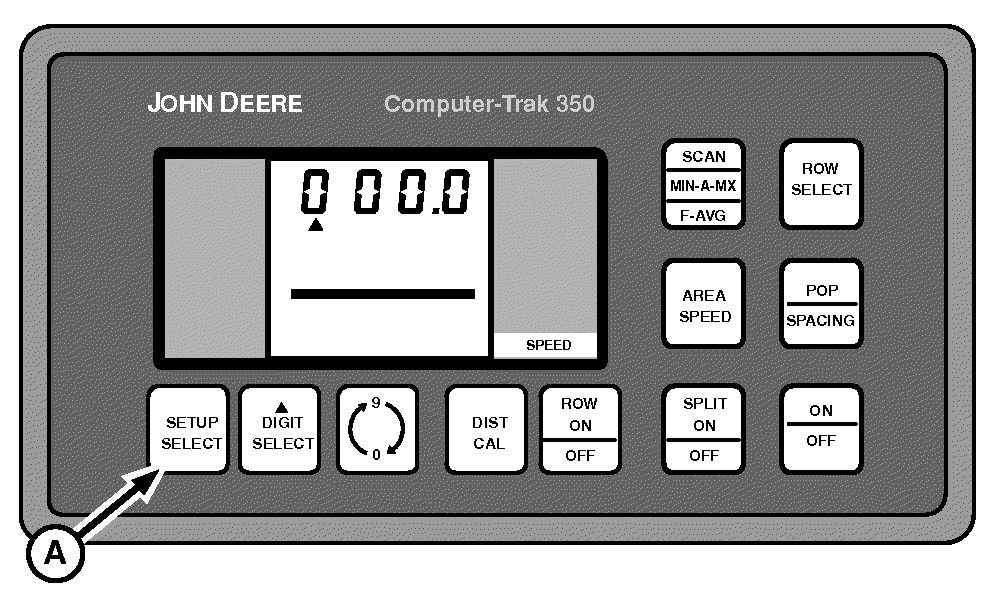

    Release SPLIT ON-OFF switch and press SETUP SELECT switch (A). SPEED screen is displayed first. “SPEED” is displayed in lower right-hand corner.


  3. Use DIGIT SELECT and 0-9 switches (B) to enter expected planting speed.

  4. Press SCAN switch (C) to begin monitoring seed flow.

  5. If power is lost to monitor for any reason, hold SPLIT ON-OFF switch (D) for one second while powering monitor on to re-enter Speed Set Mode. Previously entered speed is stored in memory and does not have to be re-entered.

OUO6045,00000B3-19-20090130
