Set the High Population Limit

NOTE:

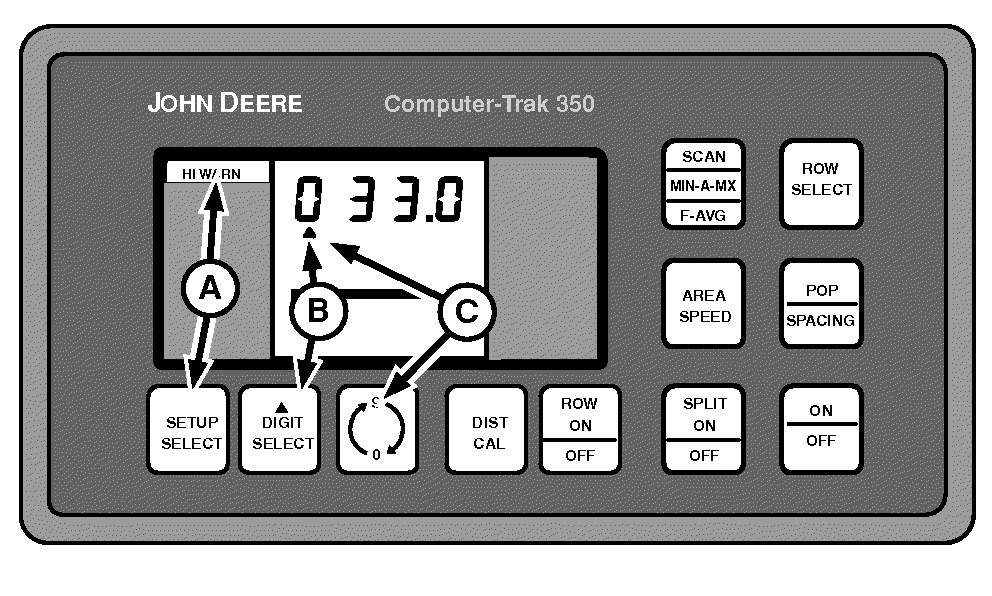

A49586-UN-26JUL02

A - SETUP SELECT Switch

B - DIGIT SELECT Switch

C - 0-9 Switch

When the monitor detects any row sensor with seed population counts over the high limit, the monitor displays HI WARN, sounds an alarm, and shows the row number giving the reading. The alarm sounds every 1/500th of a hectare (1/200th of an acre), that the row covers, as long as the population is out of range. When setting high population limits, add 50 percent to desired population for the starting value. When actual planting population is displayed, the HI WARN limit can be changed to a closer tolerance. The closer the tolerance is set to actual population, the more frequently the alarm sounds.

When planting volume metered or small seeds, kg/ha (lb/acre) values must be converted into seeds/ha (acre) values for monitor entry. Refer to planting rate chart information in operator's manual for average number of seeds/kg (lb). To determine average seeds/ha (acre), multiply average seeds/kg (lb) by kg/ha (lb/acre) rate.

1. Press SETUP SELECT switch (A) until display shows HI WARN in left-hand column.

2. NOTE: Each whole number represents 1000 seeds. In example shown, 033.0 represents a 33 000 population limit.

   Press DIGIT SELECT switch (B) until triangle is below the number to change.

3. Touch 0-9 switch (C) until the target number is displayed.
