Turn Monitor On

A49597
A49597-UN-26JUL02

Immediately after ON-OFF switch is pressed the initial POWER-UP display is shown.

A49598
A49598-UN-26JUL02

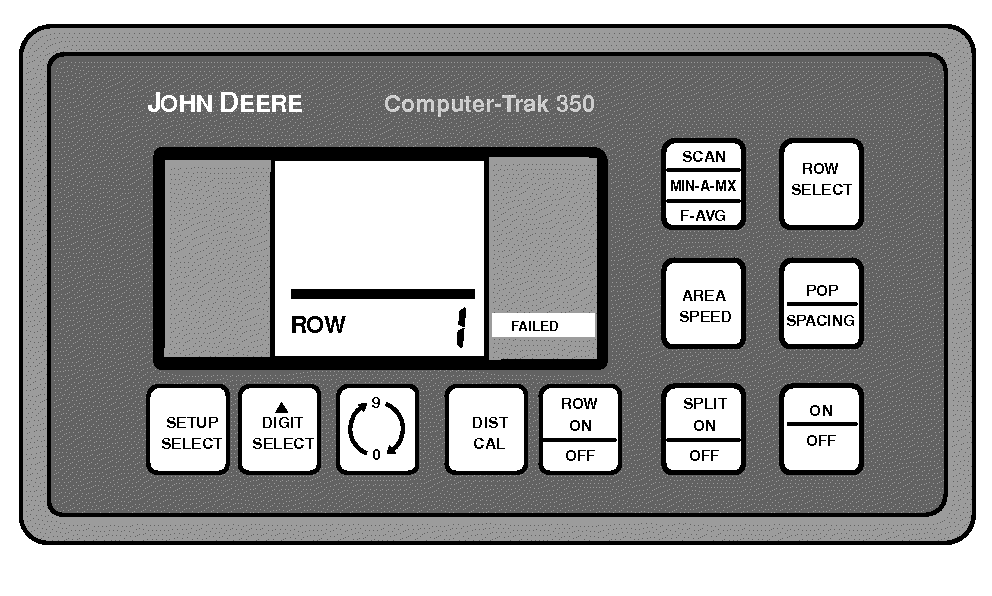

Row 1 Failed Illustrated

The display cycles through all rows and display row sensors FAILED, if machine is stopped.

If a setup message is displayed, each setup value must be examined for a possible change and to verify correct setup values.

Correct any value that has changed and then press any one of the right-hand switches to operate the monitor.
