Monitor Population and Seed Spacing

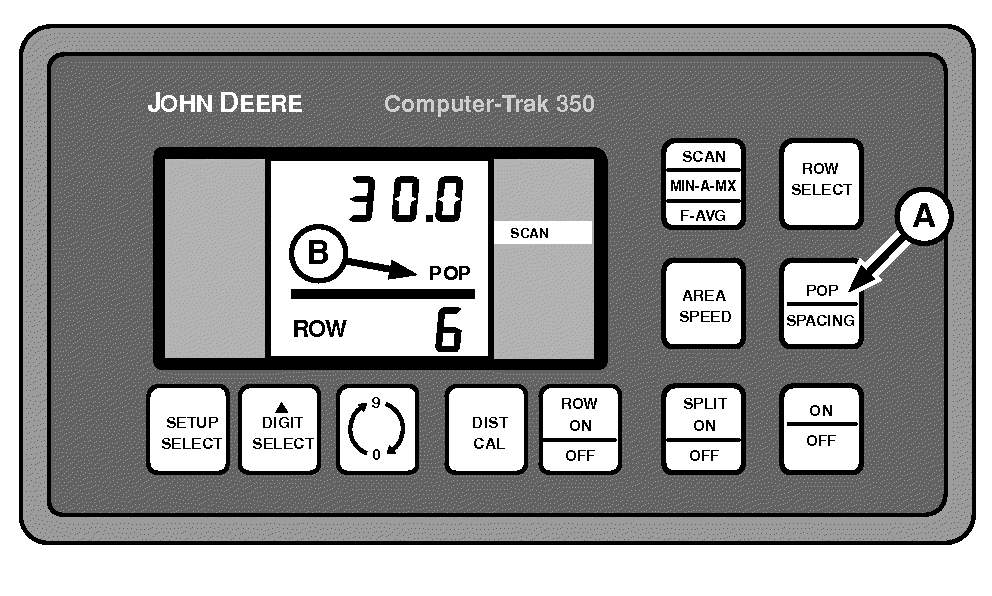

A52083-UN-28MAR03

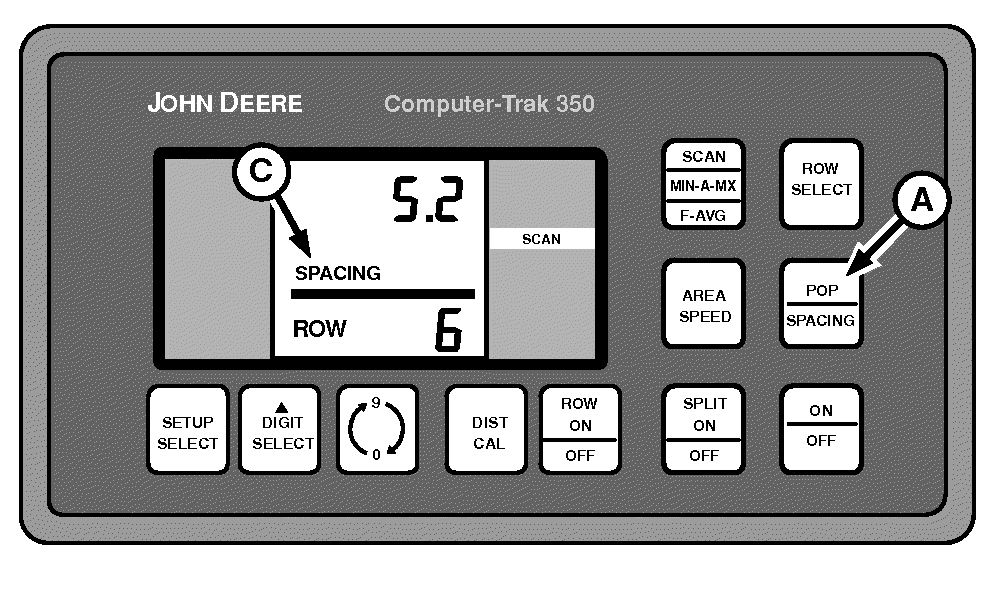

A52087-UN-28MAR03

A - POP-SPACING Switch

B - POP

C - SPACING

NOTE: When planting begins, there is a slight hesitation before the monitor begins counting up. This is normal and occurs to eliminate start up errors.

When operation begins, the monitor receives signals from the radar sensor and seed sensors.

NOTE: For example, a 76 cm (30 in.) row traveling approximately 27.4 m (90 ft.) covers 1/200th of an acre.

During the initial 1/200th acre per row, the monitor counts up to the actual population. Each row is then monitored in sequence.

Press POP-SPACING switch (A) to display either population or seed spacing during any monitoring function (SCAN, MIN-AVG-MAX, F-AVG, or ROW SELECT).

When population is displayed, “POP” (B) is shown on screen. When seed spacing is displayed, “SPACING” (C) is shown on screen.

Scan Function

A49818-UN-09AUG02

A - SCAN, MN-A-MX, F-AVG Switch

Each row is scanned and displayed in sequence. Readout can be either population or seed spacing depending on selection.

Minimum, Average, Maximum Function

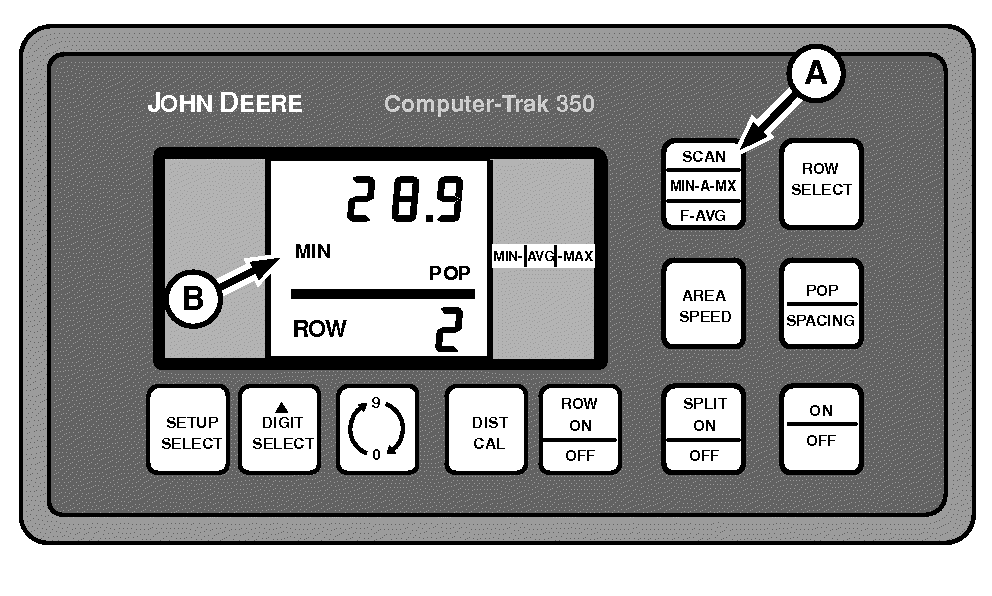

A52084-UN-28MAR03

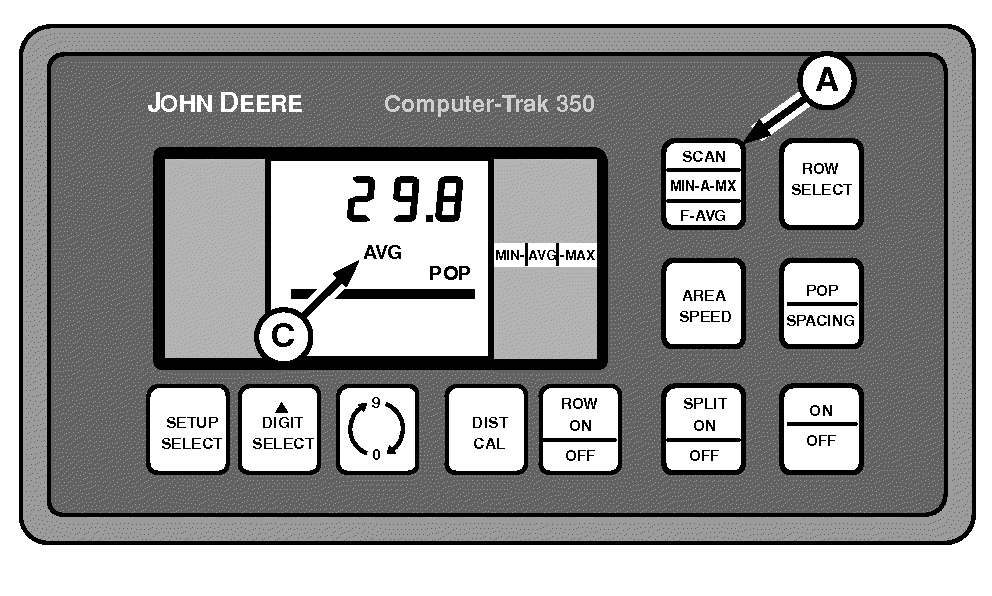

A52085-UN-28MAR03

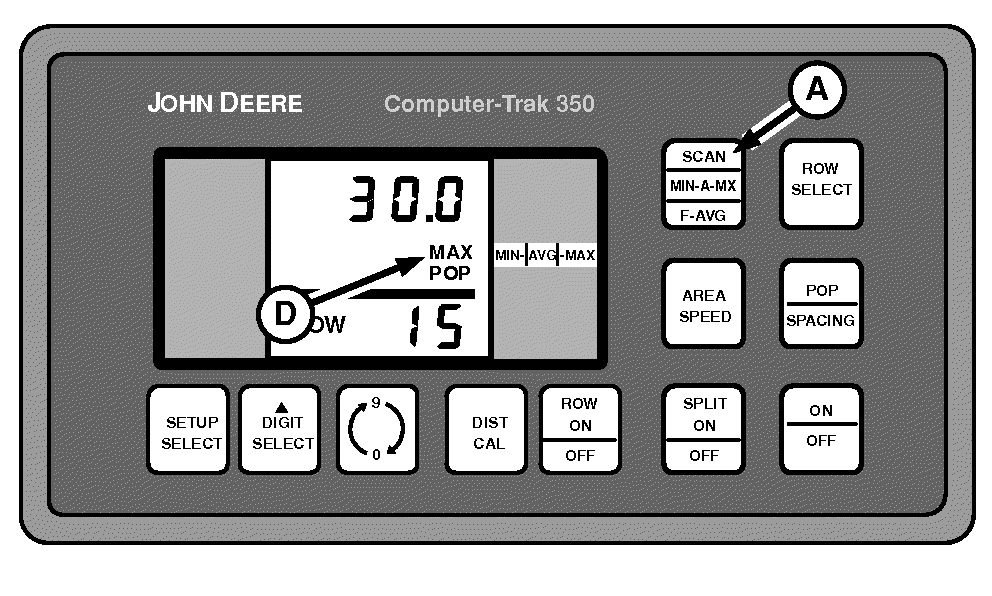

A52086-UN-28MAR03

A - SCAN, MN-A-MX, F-AVG Switch

B - MIN

C - AVG

D - MAX

Screen scrolls through three different displays. Readout can be either population or seed spacing depending on selection.

• MIN (B) screen displays the row number with the lowest current reading.
• AVG (C) screen displays average reading of all rows.
• MAX (D) screen displays the row number with the highest current reading.

Fast Average Function

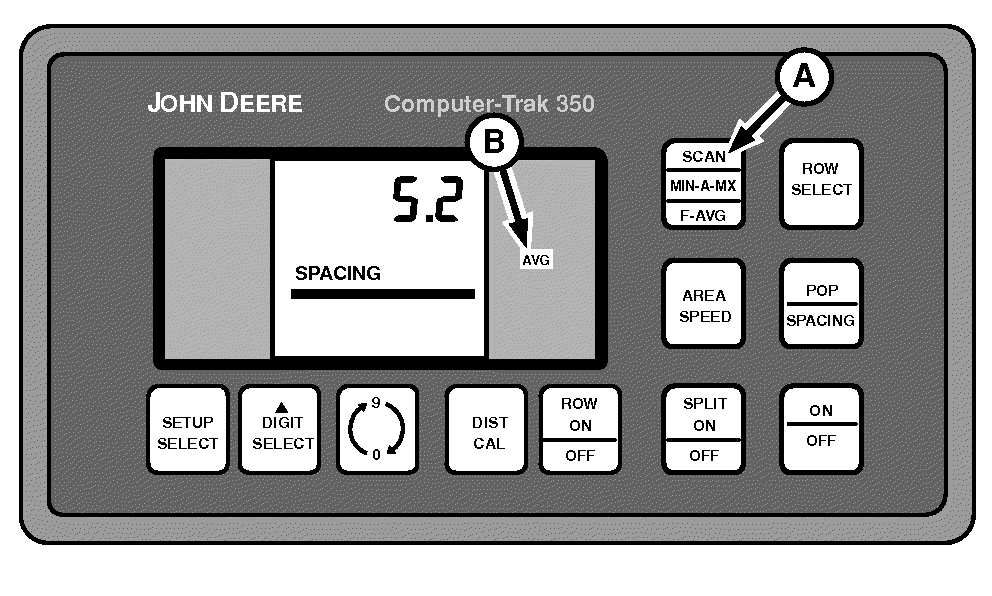

A52088-UN-28MAR03

A - MN-A-MX Switch

B - AVG

Fast Average monitors the average seed count across all rows each second OR after counting a predetermined number of seeds across all rows, whichever takes longer. The predetermined number is entered through setup mode. See F-AVG (FAST AVERAGE) in COMPUTERTRAK 350 Monitor Setup section.

Row Select Function

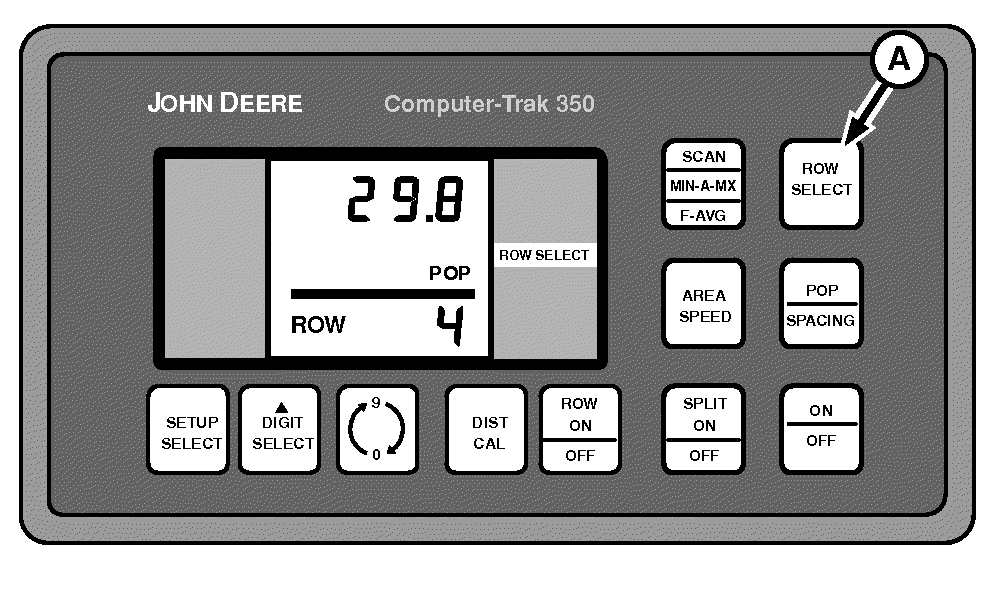

A49603-UN-26JUL02

A - ROW SELECT Switch
