Seed Counter Mode

A52106
A52106-UN-27MAR03

A49622
A49622-UN-26JUL02

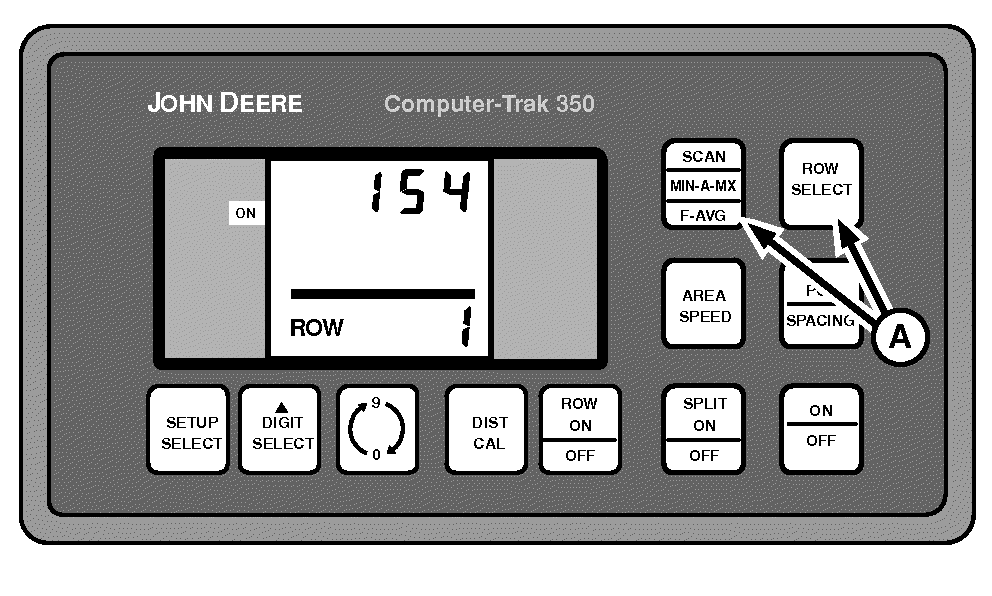

A - SCAN and ROW SELECT

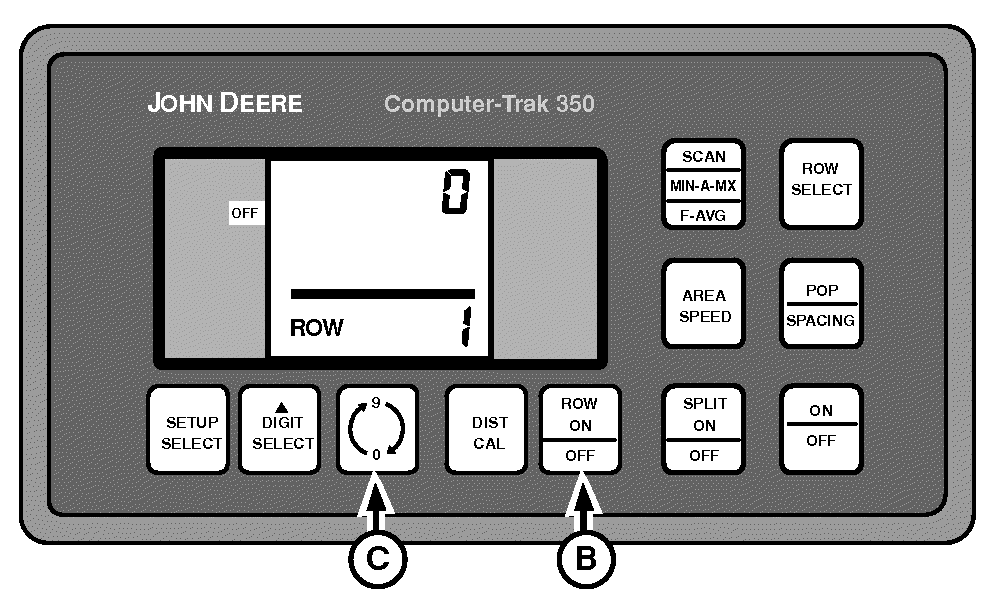

B - ROW ON-OFF Switch

C - 0-9 Switch

Seed Count Mode allows the operator to view the number of seeds that pass a single row sensor.

To enter this mode, press SCAN and ROW SELECT (A) simultaneously.

ROW ON-OFF switch (B) turns seed counter ON and OFF.

The 0-9 switch (C) has two functions:

  • Resets the accumulated count when seed counter is ON
  • Changes the row number selected when seed counter is OFF

To exit this mode, push either SCAN, ROW SELECT, AREA SPEED, POP-SPACING, or SETUP SELECT switches. Row failures are displayed while in this mode, but HI-LO warnings are not. The DIST FAILED function is inoperative in this mode. If a ROW FAILURE occurs, the Seed Count Mode is automatically exited.
