Row Failed Messages

A49605
A49605-UN-26JUL02

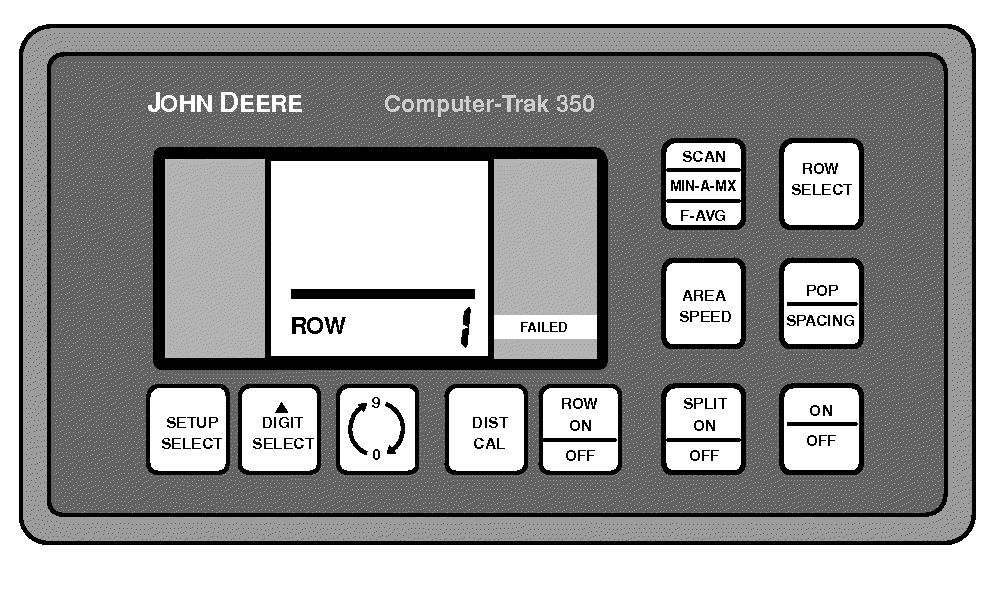

Row 1 Failed Illustrated

H41863
H41863-UN-18APR90

A - Alarm Cover

When system is in operation and a seed rate for any row falls below two seeds per second, the alarm sounds and failed row numbers are displayed without population. The messages ROW and FAILED are displayed and the audible alarm sounds continuously. This overrides any other display.

When machine is stopped, the monitor continues to display the failed message, but the alarm will stop after a few seconds. When machine is stopped, the right-hand switches can be operated to review populations for the last 1/200th of an acre per row.

The volume of the audible alarm can be changed by rotating the alarm cover (A) on bottom of monitor.

When planting is resumed, if the problem causing the alarm has not been corrected, the alarm sounds and the message is displayed. If the condition has been corrected, the monitor resumes the display mode it was in before the failure occurred.

OUO6045,00000C6-19-20090310
