High or Low Population Warnings

NOTE: If the high and low limits are set too close to each other, this warning can occur often.

A49607
A49607-UN-26JUL02

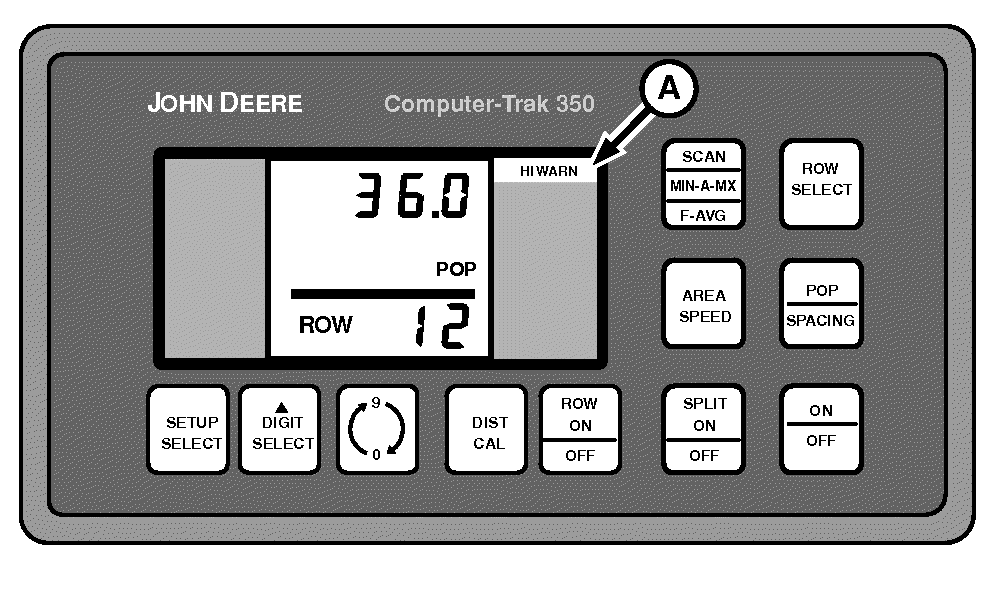

High Population Warning

A49608
A49608-UN-26JUL02

Low Population Warning

A - HI Warning

B - LO Warning

When the population of any row is outside the limits of either the HIGH or LOW settings, the display shows the rows, actual planting population and a HI warning (A) or LO warning (B). The alarm sounds intermittently.

When the planter is stopped, the right-hand switches can override the ROW FAILED indications so the row populations can be compared for diagnostic purposes, or to determine new HI or LO warning limits.

OUO6045,00000C9-19-20090202
