Point Row Planting

A49613
A49613-UN-03SEP02

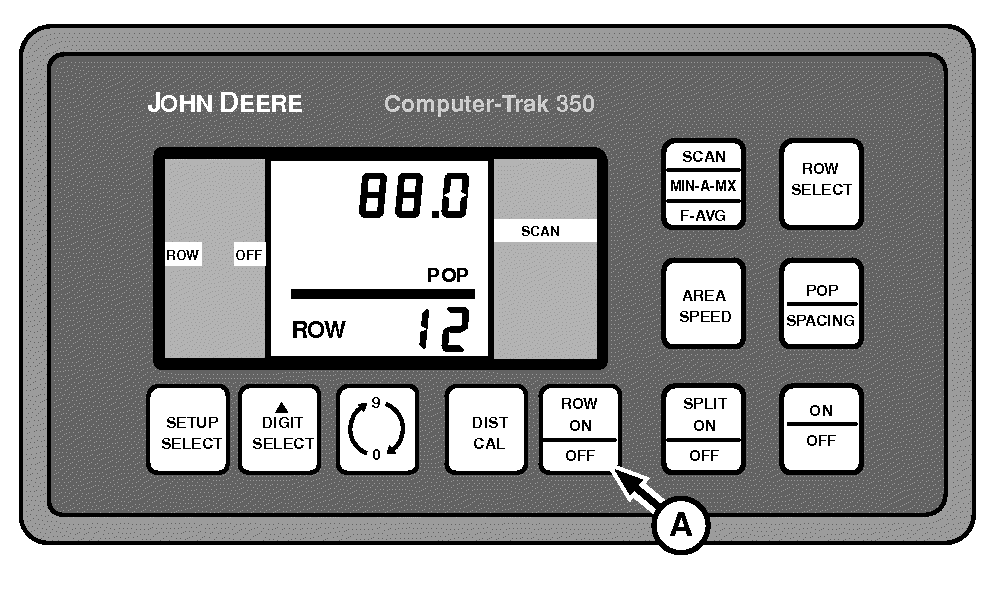

A - ROW ON-OFF Switch

When a half-width disconnect clutch is activated or any individual row units are disabled, row failure alarms can be deactivated by pressing ROW ON-OFF switch (A). The monitor stops monitoring turned off rows and ROW OFF is displayed in left-hand column as a reminder. Area is calculated using active rows only. The monitor returns to normal operation when seed flow is detected in ANY disabled row.

EXAMPLE: (12-Row Planter) If the left-hand clutch is disengaged, normal planting shows ROWS 1-6 FAILED. Pressing the monitor ROW ON-OFF switch clears failed messages and continue scanning operative rows only. When clutch is re-engaged and seed flow is detected in rows 1-6 and monitor begins scanning all rows again.

OUO6045,00000CA-19-20090206
