6000 Series Tractors with Exhaust on Hood—Radar and Bracket Installation

1.
   H45444-UN-02DEC92

   A - Toolbox

   B - Bracket

   Remove toolbox (A) and bracket (B).

---




2. NOTE: Use M12 nuts provided if tractor frame holes are not threaded.

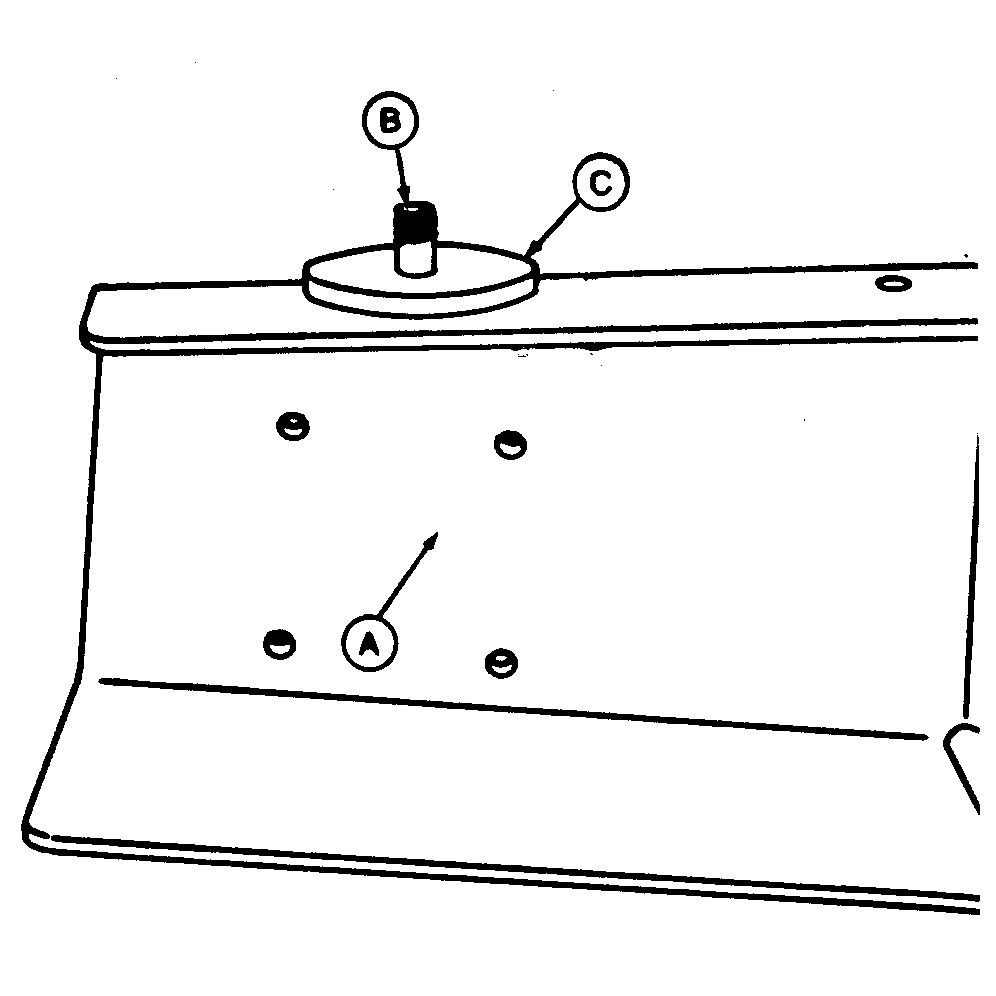

   A35493-UN-03FEB93

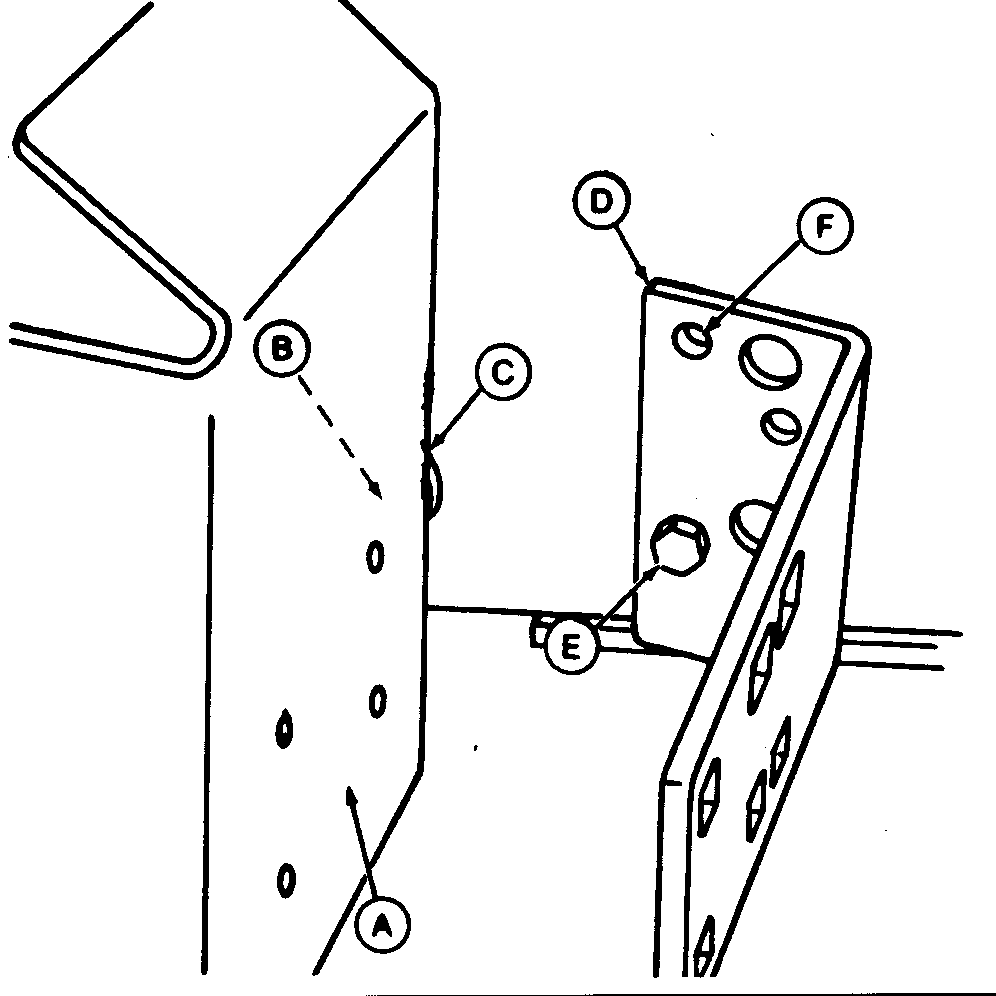

   A35494-UN-03FEB93

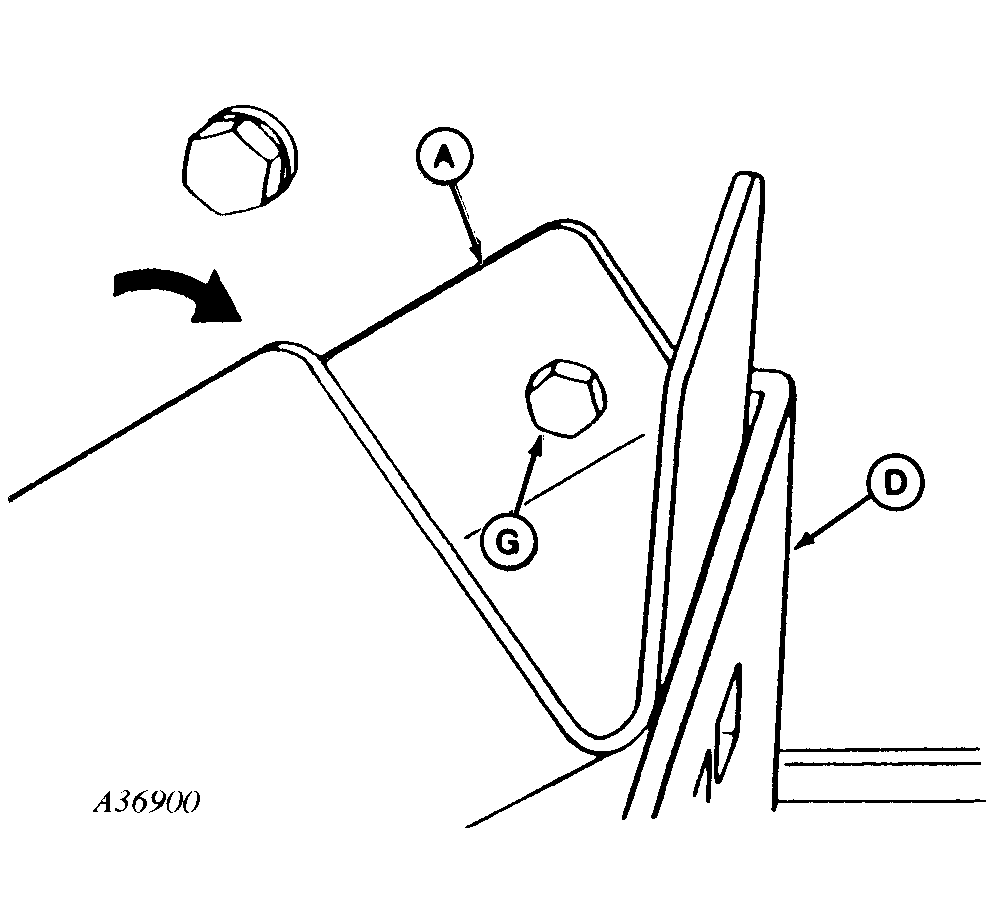

   A36900-UN-26APR95

   A - Mounting Bracket

   B - M12 x 35 mm Cap Screw

   C - Spacer

   D - Tool Box Bracket

   E - M12 x 35 mm Cap Screw

   F - Top Hole

   G - M12 x 35 mm Cap Screw

   Install radar mounting bracket (A) with M12 x 35 mm cap screw (B) and spacer (C). (Do not tighten cap screw.)

---




3. Install tool box bracket (D) with M12 x 35 mm cap screw (E). Line up top hole (F) with hole in tractor frame as illustrated.

4. Rotate radar mounting bracket (A) and line up holes in both brackets and install M12 x 35 mm cap screw (G).

5. Tighten all mounting hardware securely.

6. IMPORTANT: Radar must be mounted with serial number tag facing up.


   A35497-UN-03FEB93

   A - Lock Nut (4 used)

   Attach radar unit to bracket with four 1/4 x 4 in. cap screws, four washers, and four lock nuts (A). Washers must be installed between bracket and lock nuts.

---




7. Route harness past cab side tipping hinge to rear of cab and connect to radar power harness. Secure with harness with tie bands.

8. CAUTION: Prevent possible eye damage from microwave signal emitted from radar sensor. Avoid looking directly into the sensor face of radar.

   Nominal calibration for this radar installation is 7776. Radar points 7 degrees to side to miss rear tire. Calibration is less than other radars at 7836.

9.

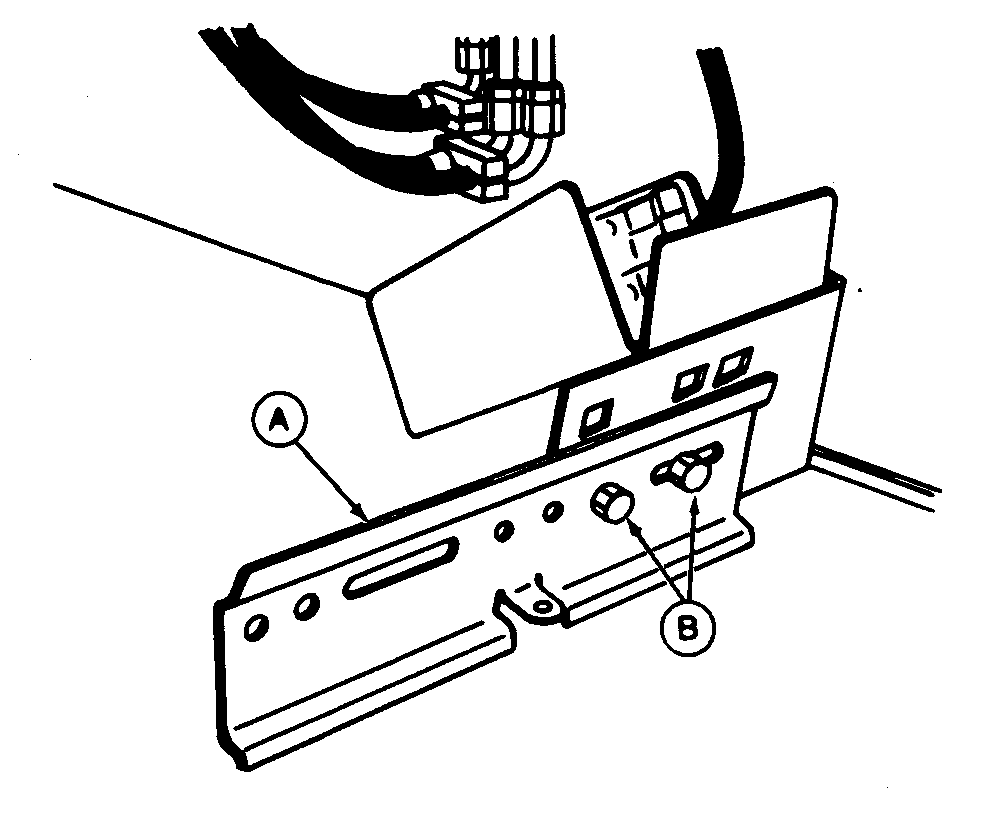

   A35496-UN-03FEB93

   A - Bracket

   B - Existing Hardware

   Install tool box bracket (A) as shown using existing hardware (B).

---




10. Install tool box.
