Install Radar Signal Adapter Harness—8000 and 8000T Series Tractor

NOTE:

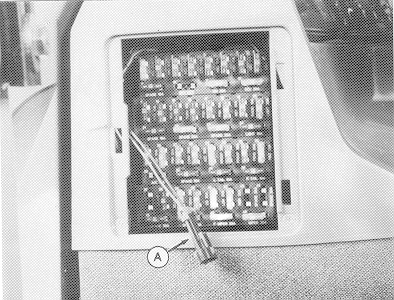

A40635
A40635-UN-26DEC96

A - 2-Pin Harness

This harness is used when existing tractor radar supplies a signal to the monitor and to the tractor instrumentation. If tractor is not equipped with radar and planter radar is installed, go to radar installation procedures.

8000 Series Tractor installation is illustrated.

  1. Remove fuse panel cover and locate 2-pin harness (A).

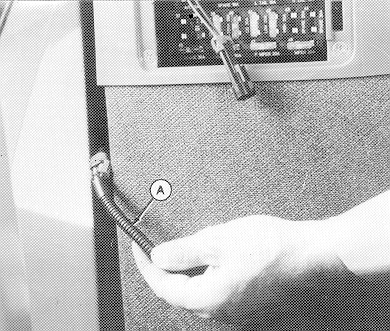

  2. A40636
    A40636-UN-26DEC96

    A - Signal Harness

    Route signal harness (A) behind console and into fuse panel area.

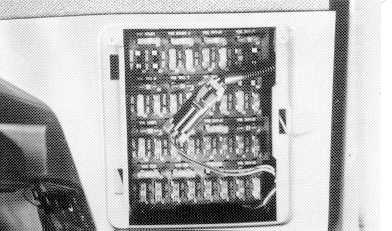

  3. A40637
    A40637-UN-26DEC96

    Connect signal harness to tractor harness. Push connector back inside fuse box.


  4. Install fuse panel cover.

  5. Route signal harness under floor mat along window.

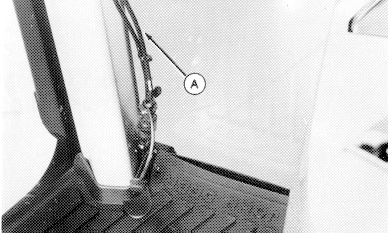

  6. A40638
    A40638-UN-26DEC96

    A - Monitor Radar Harness

    Connect signal harness to monitor radar harness (A).

OUO6045,00000E7-19-20150716
