Install Radar—8000T Series Tractors

1. Remove two plastic plugs on right-hand side of tractor ahead of the cab air filter cover.

2.
   A44870-UN-01MAY98


   A44898-UN-01MAY98

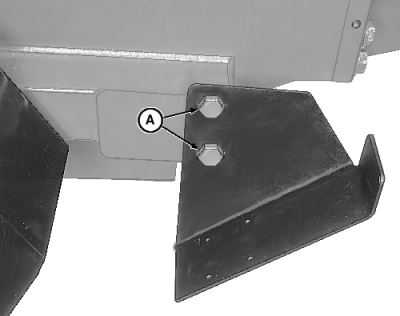

   A - M20 x 35 mm Cap Screw (2 used)

   Install radar bracket using M20 x 35 mm cap screws (A).

---




3. IMPORTANT: Radar serial number plate must be up when radar is installed.

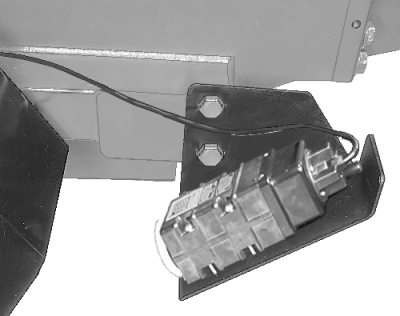

   Install radar on bracket using four 1/4 x 4 in. cap screws, flat washers, and lock nuts.

4. Route harness and connect to monitor radar lead.

5.
   A44896-UN-06MAY98

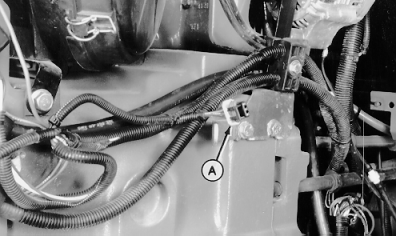

   A - 3-Pin Connector

   Locate 3-pin connector (A) on left side of transmission.

---




6.
   A44897-UN-06MAY98

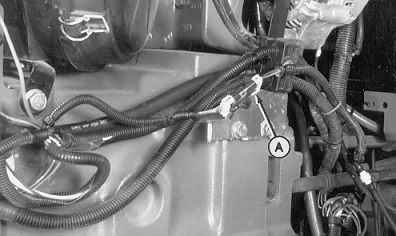

   A - Adapter Harness

   Connect radar harness to adapter harness and adapter harness (A) to 3-pin connector.

---




7. Coil excess harness and secure away from exhaust and moving parts using tie bands.
