Cleaning Meter Drive

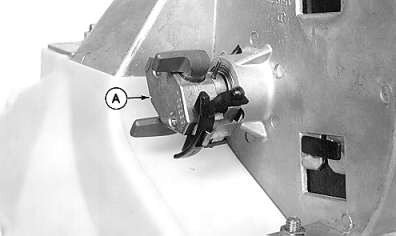

Drive (A) can stick in dusty conditions. Lubricate with John Deere Multipurpose Spray Lube TY6350.

Prior to season, disassemble drive, clean and repack with TY6333 grease.

Apply PM37477 LOCTITE ® to screw threads and assemble drive (A).

A-Drive

LOCTITE is a trademark of Loctite Corp.

AG,OUO6074,1379 -19-04AUG00-1/1
