6 and 8 Row Narrow Marker Float Range

A55424

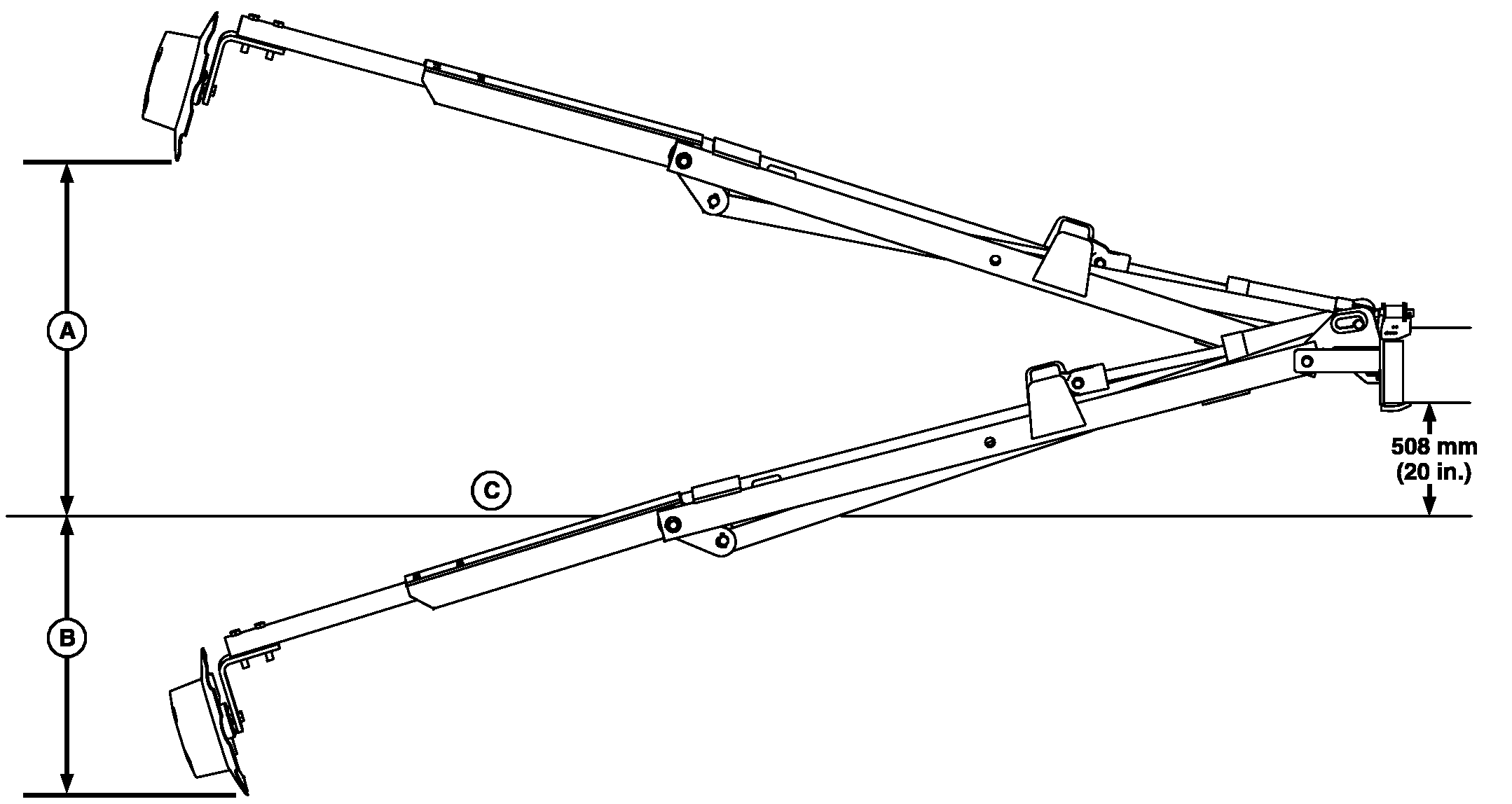

Marker Float Range (8-Row Narrow)



A-Dimension "A"

B-Dimension "B"

C-Ground Line



Marker has an approximate float range (see chart below) which should not be exceeded.

Exceeding this float range can result in damage to marker inner arm.

If this range must be exceeded, raise th marker by operating marker remote cylinder operating lever.

Planter Row Spacing Dimension "A" Dimension "B"
6-Row Narrow 760 mm (30 in.) 687 mm (27 in.) 379 mm (15 in.)
8-Row Narrow 760 mm (30 in.) 760 mm (30 in.) 711 mm (28 in.)



AG,OUO6074,1527 -19-22JUN09-1/1
