8-Row Wide and 12-Row Narrow Marker Float Range
|
|

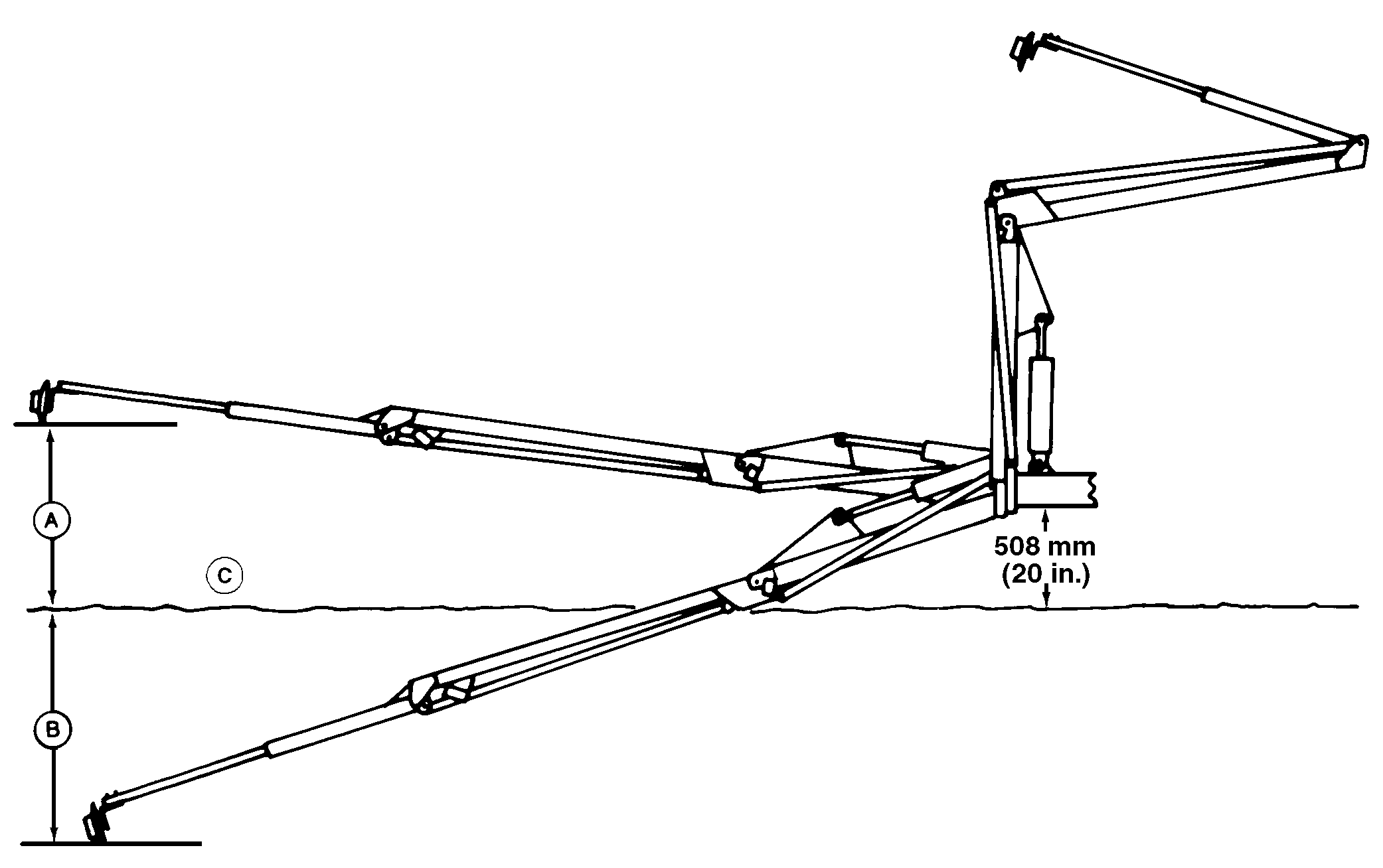

Marker has an approximate float range (see chart below) which should not be exceeded. Exceeding this float range can result in damage to marker inner arm. |
If this range must be exceeded, raise marker (machines with automatic markers) by raising machine or (machines with independent markers) by operating marker remote cylinder operating lever. |
| Planter | Row Spacing | Dimension "A" | Dimension "B" |
|---|---|---|---|
| 8-Row Wide | 910 mm (36 in.) | 916 mm (36 in.) | 791 mm (31 in.) |
| 970 mm (38 in.) | 983 mm (39 in.) | 913 mm (36 in.) | |
| 12-Row Narrow | 760 mm (30 in.) | 991 mm (39 in.) | 1219 mm (43 in.) |
