Checking Contact Drive

IMPORTANT: Avoid premature tire wear. Clean mud from under shield (A) as needed.

NOTE: Tire scrapers are available. See your John Deere dealer.

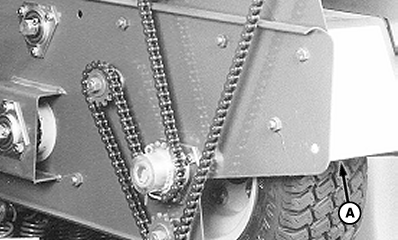

When operating in muddy conditions, check under shield (A) for mud accumulation.

A-Shield

AG,OUO6074,1544 -19-07AUG00-1/1
