Half-Width Planting Drive Disconnect

Allows either side of the machine to be turned off while on-the-go to plant point, end, or fence rows.

To disengage left-hand side of planting drive, press "L" side of CLUTCH DISENGAGE switch.

To disengage right-hand side of planting drive, press "R" side of CLUTCH DISENGAGE switch.

To resume planting with both sides of machine, push CLUTCH DISENGAGE switch to center (off) position.

A35729

With Mechanical Drive

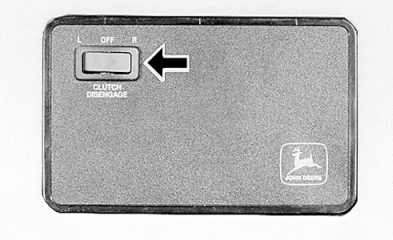

A44468

With Variable Rate Drive

OUO1074,00000AE -19-21FEB01-1/1
