Tightening Wheel Module L-Bolts

1. Align wheel modules to the frame so they are straight and square.

2. Snug top right-hand nut (A).

3. Snug top left-hand nut (B).

4. Tighten bottom right-hand nut (C) to specification.

Specification

Nut -Torque 271 N·m (200 lb-ft)

5. Tighten bottom left-hand nut (D) to specification.

Specification

Nut -Torque 271 N·m (200 lb-ft)

6. Tighten top right-hand nut (A) to specification.

Specification

Nut -Torque 271 N·m (200 lb-ft)

7. Tighten top left-hand nut (B) to specification.

Specification

Nut -Torque 271 N·m (200 lb-ft)

8. Check for alignment and straightness and adjust if necessary.

A47859
A47858

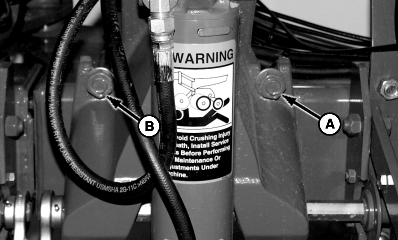

A-Top Right-Hand Nut
B-Top Left-Hand Nut

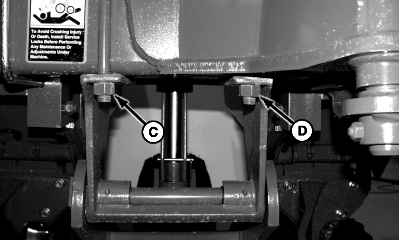

C-Bottom Right-Hand Nut
D-Bottom Left-Hand Nut

OUO1074,0001396 -19-22MAR04-1/1
