| Lubrication Intervals |
| Item |
Start of Season |
As Required |
10 Hours or Daily |
50 Hours |
100 Hours |
200 Hours |
End of Season |
| All Roller Chains |
|
|
|
|
|
|
|
| Tillage Bracket |
|
|
|
|
|
|
|
| Piston Pump Crankcase |
|
|
|
|
|
|
|
| Piston Pump Shafts |
|
|
|
|
|
|
|
| Drive Gauge Wheel Clutch |
|
|
|
|
|
|
|
| Gauge Wheels |
|
|
|
|
|
|
|
| 12-RN Lift Assist |
|
|
|
|
|
|
|
| 12-RW Lift Assist |
|
|
|
|
|
|
|
| 12-RN Leveling Linkage |
|
|
|
|
|
|
|
| 12-RN Lower Wing Pivot |
|
|
|
|
|
|
|
| 12-RN Lift Arm |
|
|
|
|
|
|
|
| Drive Wheel Hub |
|
|
|
|
|
|
|
| 12-RN Marker Arm |
|
|
|
|
|
|
|
| 12-RN Lift Assist Wheels |
|
|
|
|
|
|
|
| 12-RW Lift Assist Wheels |
|
|
|
|
|
|
|
| Unit Mounted Coulter |
|
|
|
|
|
|
|
| Unit Mounted Row Cleaners |
|
|
|
|
|
|
|
| Unit Mounted Row Cleaner Adjustment Arm |
|
|
|
|
|
|
|
| Row Cleaner for Unit Mounted Coulter |
|
|
|
|
|
|
|
| Unit Mounted Single Disk Fertilizer Opener |
|
|
|
|
|
|
|
|
|
OUO1078,000028D -19-01JUN09-1/13
|
|

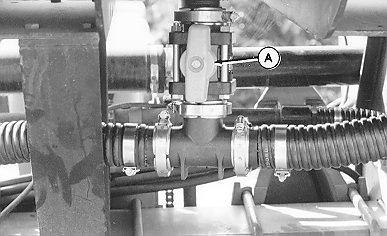

Lubricate at beginning of planting season with John Deere Multi-Purpose Lubricant or an equivalent SAE multi-purpose type grease at point (A).
A-Shut-Off Valve
|
Shut-Off Valve for Liquid Fertilizer Attachment
|
|
|
OUO1078,000028D -19-01JUN09-2/13
|

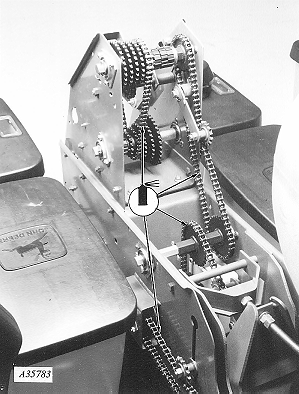

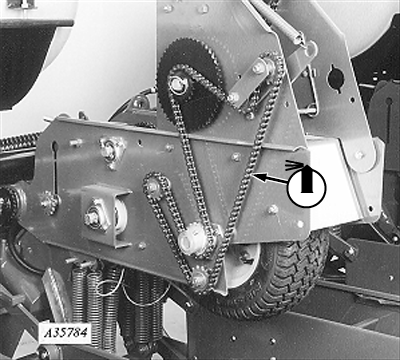

Piston Pump Drive Chain
|
Liquid Fertilizer Attachment Chain
|
Transmission and Half-Width Drive Chain
|
Variable Drive Chain
|
|
|
OUO1078,000028D -19-01JUN09-3/13
|
|
Fill crankcase of pump with TY6296 SAE 80/90 W EP gear oil or equivalent at port (A). Fill crankcase level to check port (B). Check level daily thereafter.
A-Port
B-Port
|
Piston Pump
|
|
|
OUO1078,000028D -19-01JUN09-4/13
|

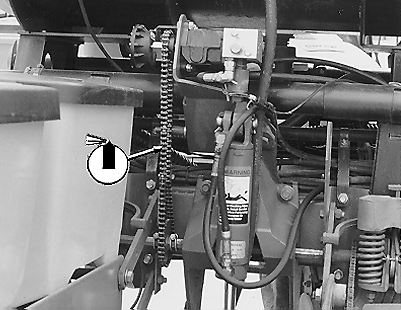

Transmission Drive Chain
|

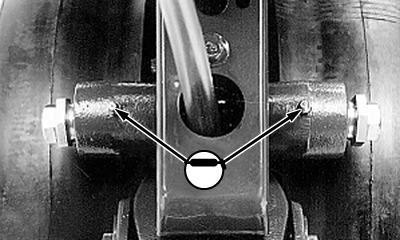

Gauge Wheels
|

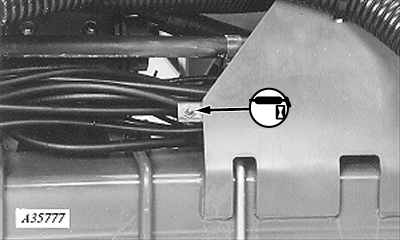

Wheel Cylinder Pin
|

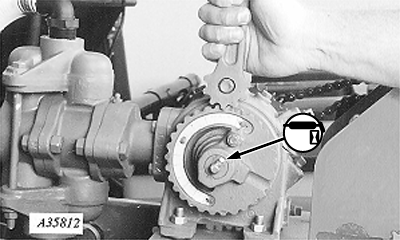

Piston Pump Shafts
|
Frame Mounted Coulter
|
|
|
OUO1078,000028D -19-01JUN09-5/13
|
|

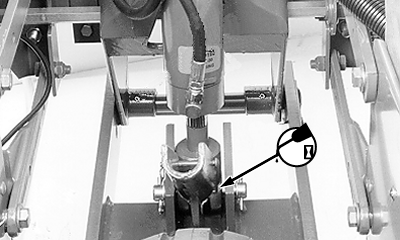

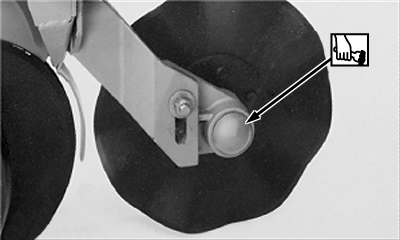

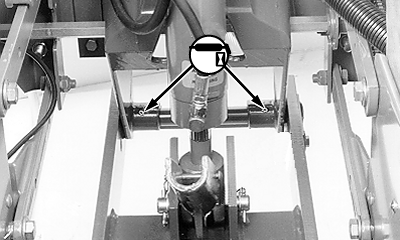

Grease lower pivot pins (2 places) and arm pivot every ten hours.
|
Single-Disk Fertilizer Opener
|
|
|
OUO1078,000028D -19-01JUN09-6/13
|
|
|
OUO1078,000028D -19-01JUN09-7/13
|

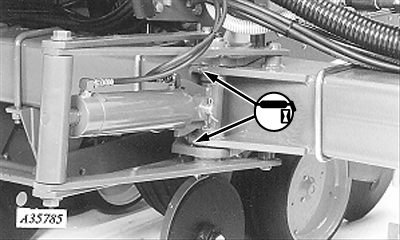

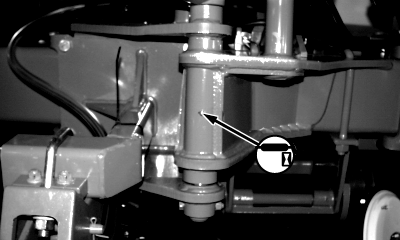

1760 12-Row Narrow Wing Pivot
|
Wing Pivot-6RN and 8RN
|

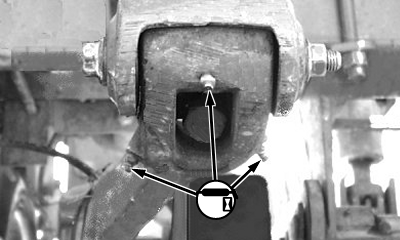

12-Row Narrow Flex Pivot Main Frame
|
|
|
OUO1078,000028D -19-01JUN09-8/13
|
|

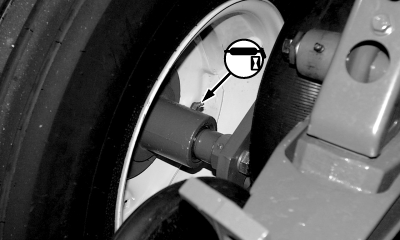

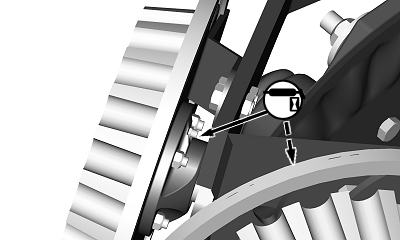

These bearings are packed with grease at the factory. Every 100 hours, inspect bearing and adjust if necessary. Every 200 hours or before each planting season, whichever comes first, disassemble bearing, clean and repack.
|
Carrying Wheel Bearing Hub
|
|
|
OUO1078,000028D -19-01JUN09-9/13
|
|
|
OUO1078,000028D -19-01JUN09-10/13
|
|
These bearings are packed with grease at the factory. Every 100 hours, inspect bearing and adjust if necessary. Every 200 hours or before each planting season, whichever comes first, disassemble bearing, clean and repack.
|

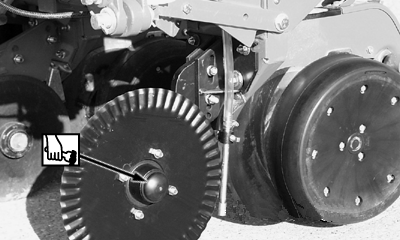

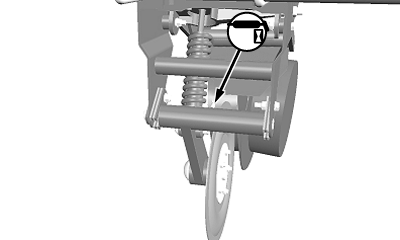

Unit Mounted Coulter
Unit Mounted Single-Disk Fertilizer Opener
Frame Mounted Single-Disk Fertilizer Opener
|
|
|
OUO1078,000028D -19-01JUN09-11/13
|
|
Lubricate at end of planting season with John Deere Multi-Purpose Lubricant or an equivalent SAE multi-purpose type grease at point (A).
A-Shut-Off Valve
|
Shut-Off Valve for Liquid Fertilizer Attachment
|
|
|
OUO1078,000028D -19-01JUN09-12/13
|

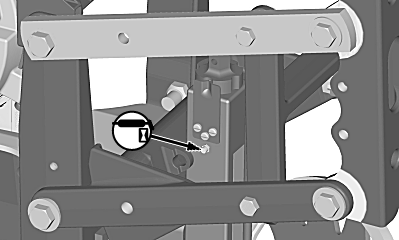

Unit Mounted Row Cleaner Adjustment Arm
|
Row Cleaner for Unit Mounted Coulter
|
|
Row cleaner has sealed bearings from factory and lubrication is not required. Apply a few pumps of grease to lube fitting every 200 hours until a slight resistance is felt. If a non-sealed bearing is installed, use 50 hour lubrication interval.
|

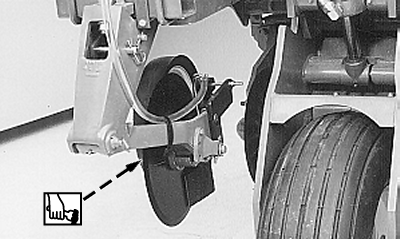

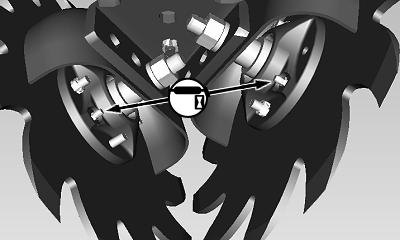

View From Under Unit Mounted Row Cleaner
|
|
|
