Protect Hydraulic Motor Seals-Low-Pressure (Case) Drain Connection

IMPORTANT: Avoid damage to fan motors, equip tractor with a low-pressure drain connection (LESS THAN 172 kPa [1.72 bar] [25 psi]). See Case Drain Connection Kits table.

IMPORTANT: Use the connection kits listed in table on John Deere tractors. If low-pressure drain connection kit is already installed, ensure it matches what is listed on table.

Order one of the following kits for a John Deere tractor. For other tractors, see tractor dealer for a suitable connection kit.

NOTE: John Deere Connection Kits include Installation Instructions.

Case Drain Connection Kits
Tractor Model Kit Number
30-60 Series Row Crop and 50 Series 4WD BA30132
60 and 70 Series 4WD BA30133
6000 and 10 Series
7420 and 7520 Series with serial numbers (- 016498)		 BA30216
6020, 7220, 7320, 7420, 7520 Series BA30217
7200, 7400, 7600, 7700, 7800 and 10 Series BA30218
7720, 7820 and 7920 Series BA30221
8000, 8000T, 8010, 8010T, 8020, 8020T and 8030T Series BA30219
8030 Wheel Tractors, 8R, and 8RT Series Tractors RE222721
9000, 9000T, 9010, 9010T, 9020, 9020T, 9030, 9030T Series BA30220

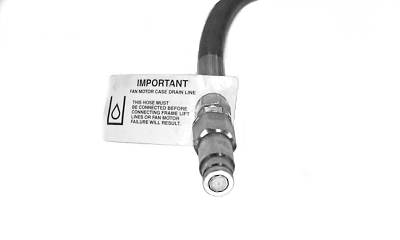

A53392

Flush Face Case Drain Hose Tip

OUO6045,0000032 -19-12JUN09-1/1
