OMA88832: 1760 and 1760NT Wing-Fold PlantersA01760R735101A01760F735101A01760N735101, Block File: OUO6045_0000A27_19

1. Support machine safely. (See procedure at the beginning of this section.)

causym CAUTION: Disk blades are sharp. Wear protective gloves and handle disks carefully.

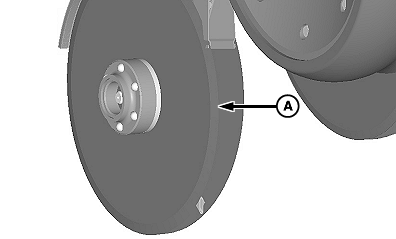

2. Remove one opener blade assembly (A).

A-Opener Blade Assembly

OUO6045,0000A27 -19-26MAY09-1/2

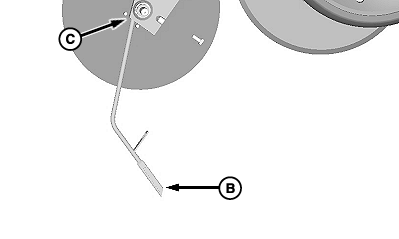

3. Remove fertilizer supply hose from tube (B).

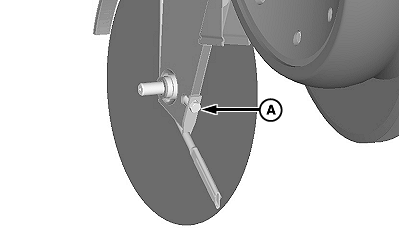

4. Remove cap screw (A).

5. Pull tube (B) down out of hole in shank (C).

6. Install replacement tube in reverse order and tighten cap screw (A) to specification.

Specification

Fertilizer Tube Retaining Cap Screw -Torque

35 N·m

(26 lb.-ft.)

causym CAUTION: Disk blades are sharp. Wear protective gloves and handle disks carefully.

7. Install disk blade and tighten blade retaining nut to specification.

Specification

Blade Retaining Nut -Torque

122 N·m

(90 lb.-ft.)

8. Remove support components.

A-Cap Screw
B-Tube
C-Hole in Shank

OUO6045,0000A27 -19-26MAY09-2/2
