VacuMeter™ Motor (Case) Drain Requirements

IMPORTANT: VacuMeter™ case drain hose (A) must be attached to low-pressure drain connection before any hoses are connected. Case drain must have less than 172 kPa (1.72 bar) (25 psi) or fan motor damage occurs.

The hydraulic motors used on the VacuMeter™ system are low flow, high-pressure motors, and are designed to operate on a closed-center hydraulic system. Connecting the VacuMeter™ to an open-center system is not recommended.

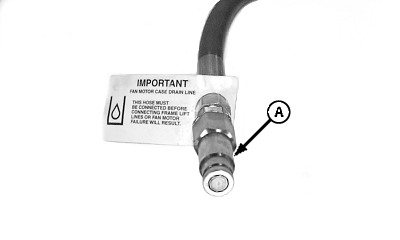

A-Motor Seal (Case) Drain Hose
