OMA88832: 1760 and 1760NT Wing-Fold PlantersA01760R735101A01760F735101A01760N735101, Block File: OUO6074_0000AAA_19

1. Lower machine to the ground.

2. TRACTORS WITH ELECTRO-HYDRAULIC SCV'S, refer to tractor OM for SCV operation when disconnecting hydraulic hoses.

3. Disconnect all hydraulic hoses and harnesses.

4. Attach dust cover onto machine harness connector.

OUO6074,0000AAA -19-12JUN09-1/5

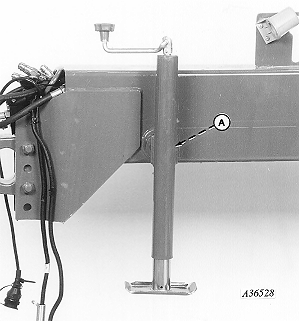

5. Remove pin (A) and remove jack from storage position.

A-Pin

OUO6074,0000AAA -19-12JUN09-2/5

6. Move jack into position and attach with pin (A) and quick-lock pin.

A-Pin

OUO6074,0000AAA -19-12JUN09-3/5

Planters with Hitch Clevis

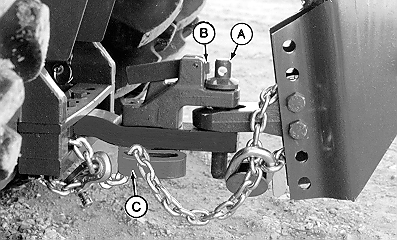

Raise hitch with jack until weight of hitch is transferred from tractor drawbar to jack.

Remove spring locking pin (B), pin (C), and hitch pin (A).

Remove safety chain from tractor drawbar support and chain support.

Drive tractor slowly forward.

A-Hitch Pin
B-Spring Locking Pin
C-Pin

OUO6074,0000AAA -19-12JUN09-4/5

Planters with Hitch Ring

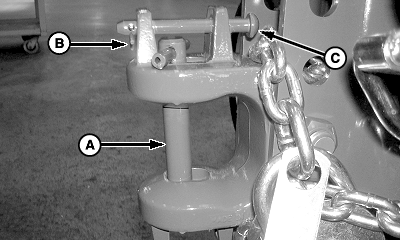

Raise hitch with jack until weight of hitch is transferred from tractor drawbar to jack.

Raise handle on pin latch (B) and remove pin (A).

Remove safety chain from tractor drawbar support and chain support (C).

Drive tractor slowly forward.

A-Pin
B-Pin Latch
C-Chain Support
