Adjust Meter Chain Drive

NOTE: It can be necessary to align sprockets with drive mechanism on meter.

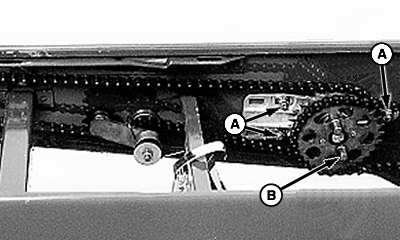

1. Loosen nuts (A) and adjust sprocket assembly so drive lugs (B) align with meter tabs (C).

2. Install hoppers. Use a small mirror to check alignment of drives.

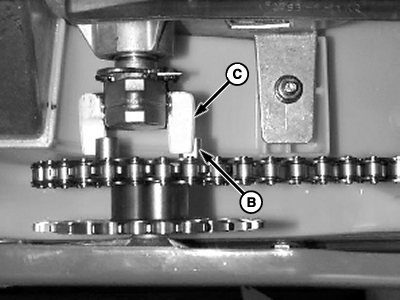

• When meter drive is misaligned, drive lugs (B) can be seen outside meter tabs (C) as shown.

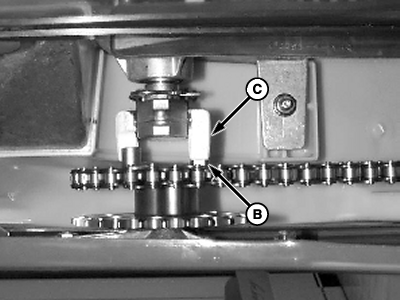

• When meter drive is properly aligned, drive lugs (B) and meter tabs (C) are in line as shown.

A-Nuts
B-Drive Lugs
C-Meter Tabs

OUO6074,0000C18 -19-22MAY09-1/1
