Finger Pick-Up Meter Drive Shaft Bearing

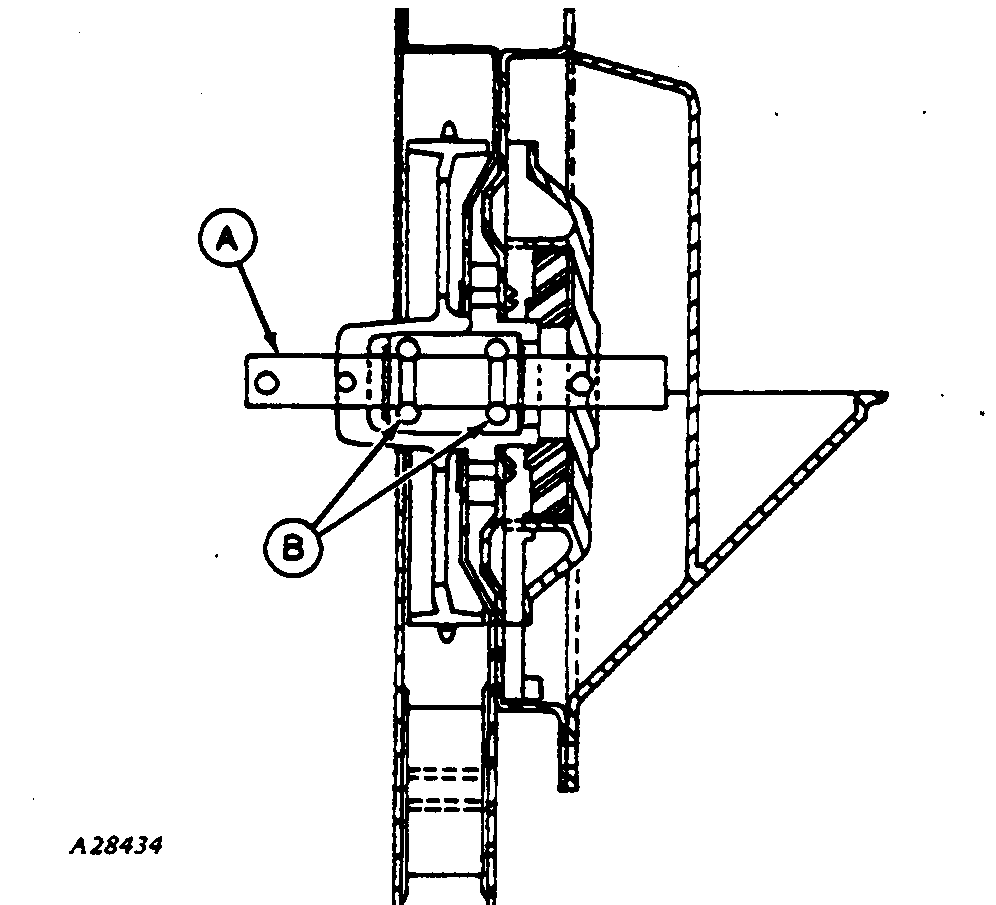

The finger pick-up drive shaft (A) has a sealed double-row ball bearing (B) designed to give years of dependable service. To remove drive shaft and bearing from belt housing, remove driver wheel and three face plate screws.

A-Drive Shaft
B-Ball Bearing

AG,OUO6074,1372 -19-22MAY09-1/1
