Safety Features

1770 NT 12-Row, 16-Row, and 24 -Row Planter: In addition to the safety features shown here, other components and systems, safety signs on the machine, and safety messages and instructions in the Operator's Manual contribute to the safe operation of this planter when combined with the care and concern of a capable operator.

The construction of this implement may not meet all local or national requirements for transport on a public roadway. In regions or countries that have national certification requirements for roadway transport, it may be impossible for this implement to be approved for such roadway transport. The customer is responsible for understanding and complying with all local, regional, and national requirements regarding roadway transport.

LD45720,00001D1 -19-21APR09-1/4

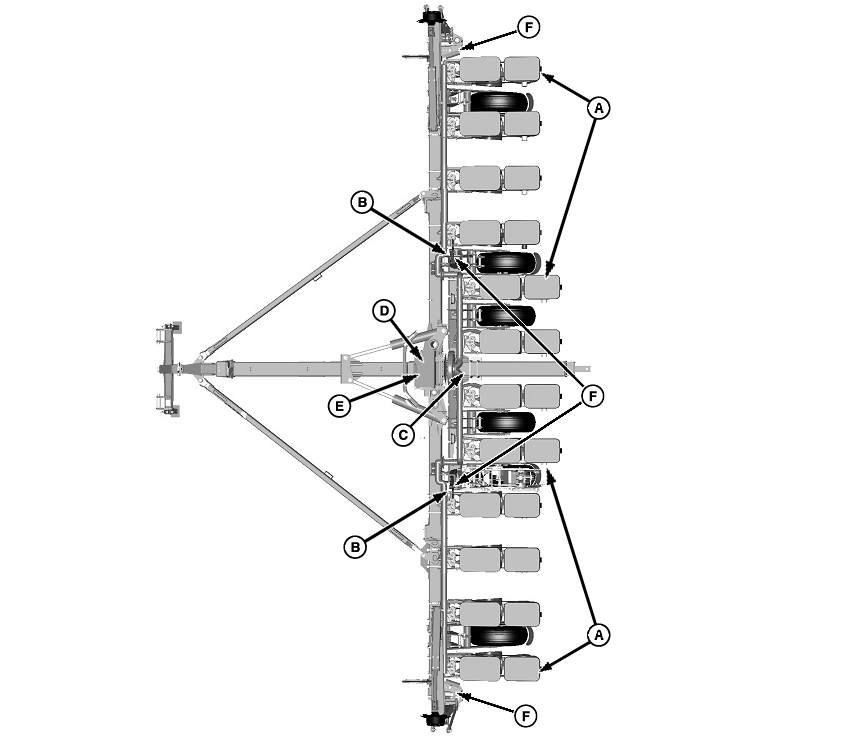

A53402

Safety Features 1770NT 12-Row


A-Reflectors
B-Roadway Lights and Reflectors


C-Slow Moving Vehicle Emblem


D-Counter-Balance Valve
E-Marker Interlock System


F-Service Lock Storage Location

LD45720,00001D1 -19-21APR09-2/4

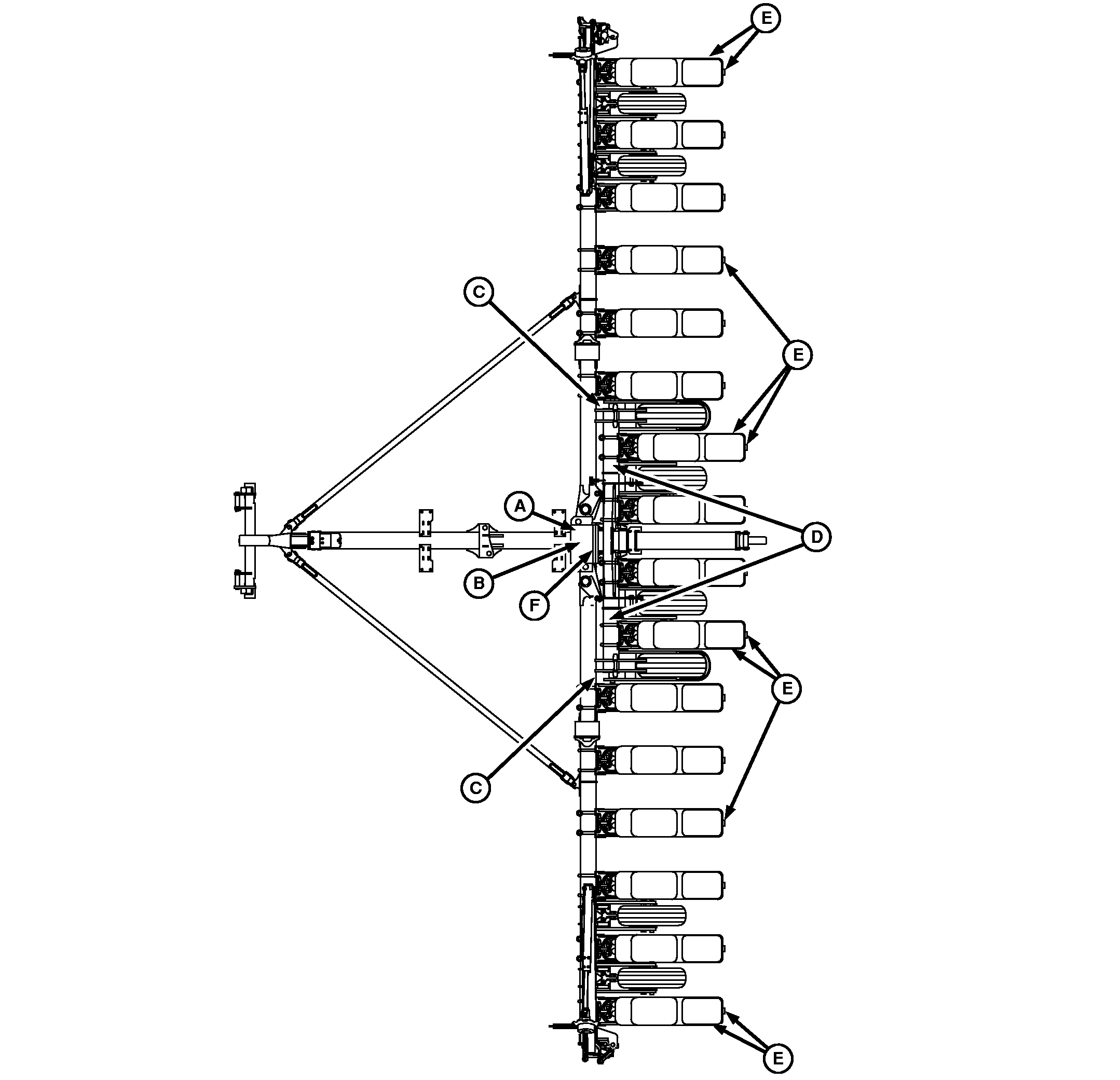

A56205

Safety Features 1770NT 16-Row


A-Counter-Balance Valve
B-Marker Inter-Lock System


C-Roadway Transport Lights, Reflectors


D-Roadway Transport Lights
E-Reflectors


F-Slow Moving Vehicle Emblem

LD45720,00001D1 -19-21APR09-3/4

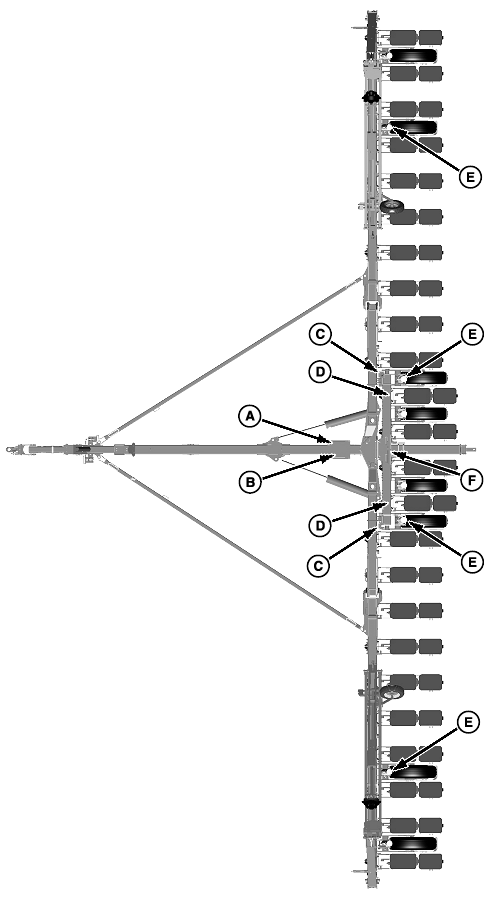

A54114

Safety Features 1770NT 24-Row


A-Counter-Balance Valve
B-Marker Inter-Lock System
C-Roadway Transport Lights Reflectors


D-Roadway Transport Lights


E-Service Locks (Storage Location)


F-Slow Moving Vehicle Emblem

LD45720,00001D1 -19-21APR09-4/4
