| Lubrication Intervals |
| Item |
Start of Season |
As Required |
10 Hours or Daily |
25 Hours |
50 Hours |
100 Hours |
200 Hours |
End of Season |
| All Roller Chains |
|
|
|
|
|
|
|
|
| Fertilizer Shut Off Valves |
|
|
|
|
|
|
|
|
| Quick-Fill Valve |
|
|
|
|
|
|
|
|
| Gauge Wheels |
|
|
|
|
|
|
|
|
| Hitch Pivot |
|
|
|
|
|
|
|
|
| Wing Flex Joints |
|
|
|
|
|
|
|
|
| Marker Pivot Pin |
|
|
|
|
|
|
|
|
| Single Disk Fertilizer Opener |
|
|
|
|
|
|
|
|
| 24 Row Frame Mounted Coulter |
|
|
|
|
|
|
|
|
| Flex Shaft |
|
|
|
|
|
|
|
|
| 12 and 16 Row Marker Pivot and Control Strap |
|
|
|
|
|
|
|
|
| Piston Pump Shafts |
|
|
|
|
|
|
|
|
| Piston Pump Crankcase |
|
|
|
|
|
|
|
|
| 24 Row Variable Rate Pump Shafts |
|
|
|
|
|
|
|
|
| Tillage Support bracket |
|
|
|
|
|
|
|
|
| 24 Row Fixed rate Pump Shafts |
|
|
|
|
|
|
|
|
| 24 Row Variable Rate Pump Crankcase |
|
|
|
|
|
|
|
|
| 24 Row Fixed rate Pump Crankcase |
|
|
|
|
|
|
|
|
| 24 Row Frame Fold Point |
|
|
|
|
|
|
|
|
| 24 Row Wing Flex Point |
|
|
|
|
|
|
|
|
| 24 Row Fold Cylinder |
|
|
|
|
|
|
|
|
| 24 Row Mechanical Transmission |
|
|
|
|
|
|
|
|
|
|
OUO6045,0000156 -19-01JUN09-1/17
|
| Lubrication Intervals |
| Item |
Start of Season |
As Required |
10 Hours or Daily |
25 Hours |
50 Hours |
100 Hours |
200 Hours |
End of Season |
| 24 Row Marker |
|
|
|
|
|
|
|
|
| Main Frame Wheel Modules |
|
|
|
|
|
|
|
|
| Wing Wheel Modules |
|
|
|
|
|
|
|
|
| Main Frame Cylinders Rod Ends |
|
|
|
|
|
|
|
|
| Wing Wheel Bearings |
|
|
|
|
|
|
|
|
| Drawbar Hitch |
|
|
|
|
|
|
|
|
| Fold Joints |
|
|
|
|
|
|
|
|
| Unit Mounted Single-Disk Fertilizer Openers |
|
|
|
|
|
|
|
|
| Unit Mounted Coulter |
|
|
|
|
|
|
|
|
| Unit Mounted Row Cleaner Adjustment Arm |
|
|
|
|
|
|
|
|
| Row Cleaner for Unit Mounted Coulter |
|
|
|
|
|
|
|
|
|
|
OUO6045,0000156 -19-01JUN09-2/17
|

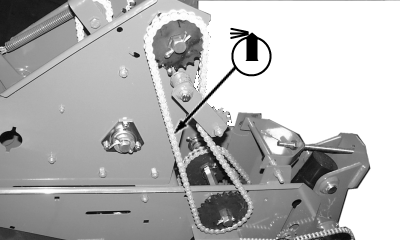

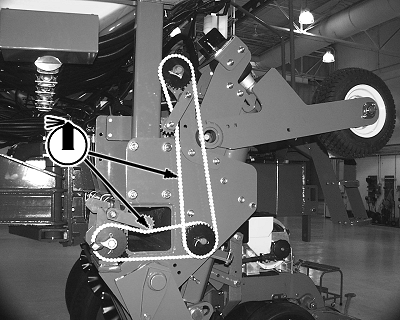

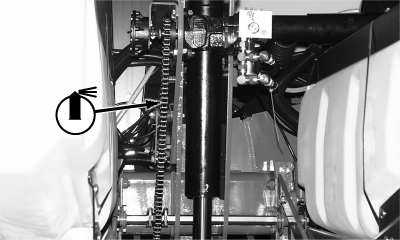

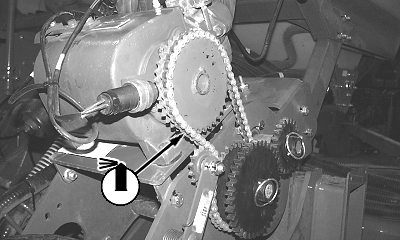

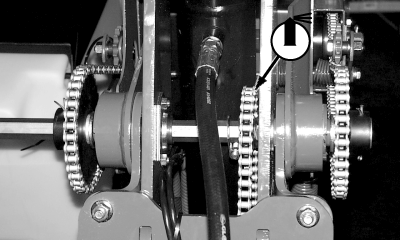

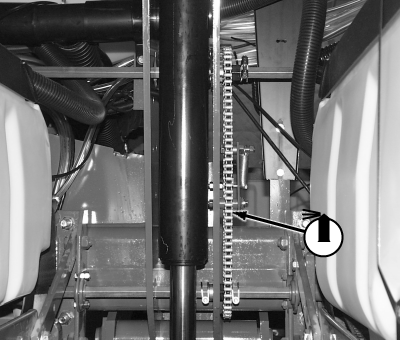

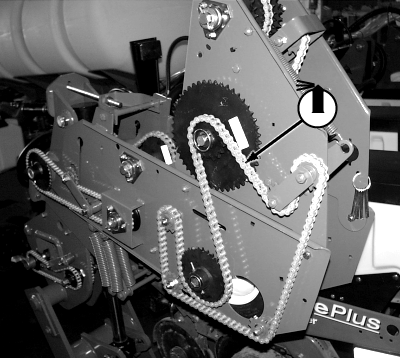

12 and 16 Row Transmission Chain
|

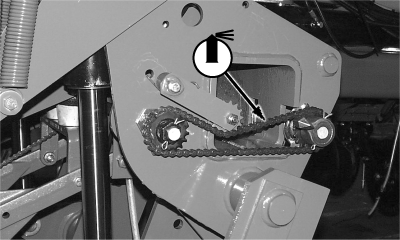

12 and 16 Row Half-Width Drive Chain
|
12 and 16 Row Half-Width Drive Chain
|
12 and 16 Row Variable Rate Drive Chain
|
12 and 16 Row Drillshaft Drive Chain
|

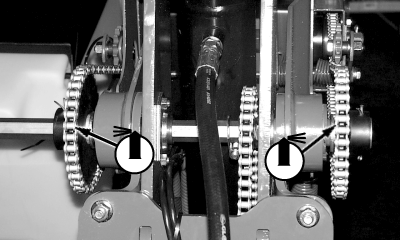

12 and 16 Row Drillshaft Wing Drive Chains Both Sides
|
|
|
OUO6045,0000156 -19-01JUN09-3/17
|

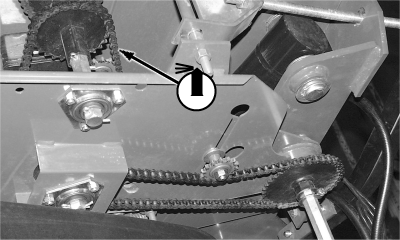

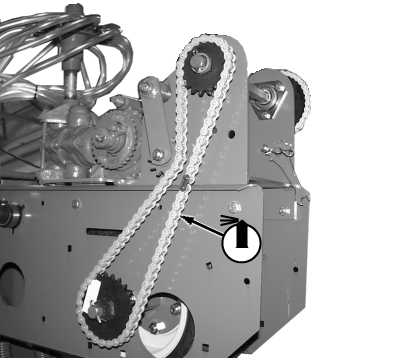

12 and 16 Row Countershaft Drive Chains
|
12 and 16 Row LH and RH Countershaft Drive Chains
|
12 and 16 Row Transmission Input Drive Chain
|

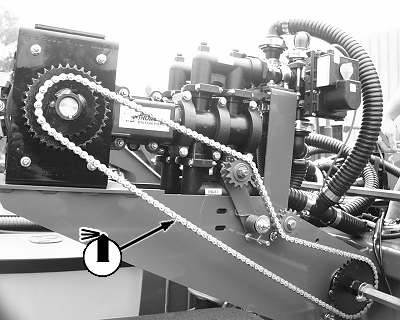

12 and 16 Row Piston Pump Drive Chain
|
|
|
12 and 16 Row Piston Pump Chain
|
|
|
OUO6045,0000156 -19-01JUN09-4/17
|

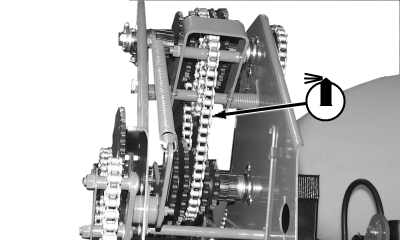

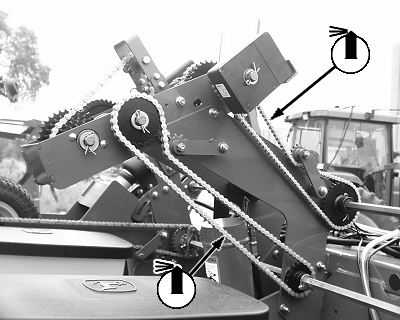

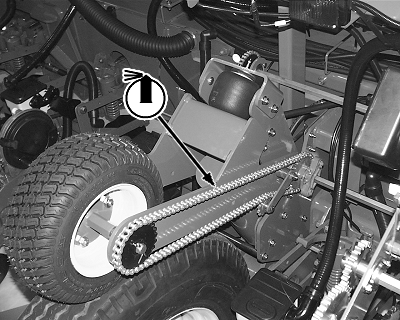

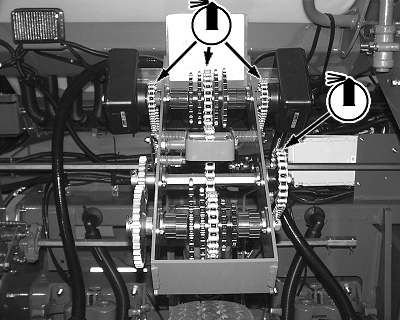

24 Row Contact Wheel Drive Chains
|

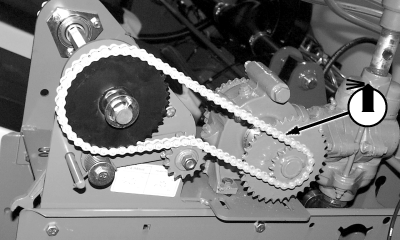

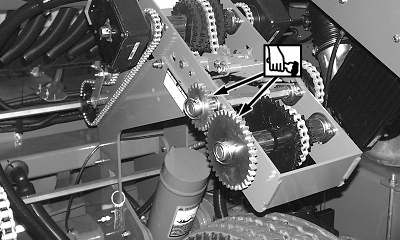

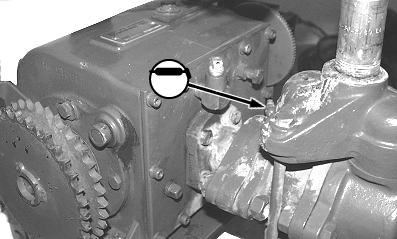

24 Row Transmission Chains
|
24 Row Transmission Chains
|
24 Row Drillshaft Drive Chains
|
24 Row Fertilizer Pump Drive Chain
|
24 Row Variable Rate Fertilizer Pump Chain
|
|
|
OUO6045,0000156 -19-01JUN09-5/17
|

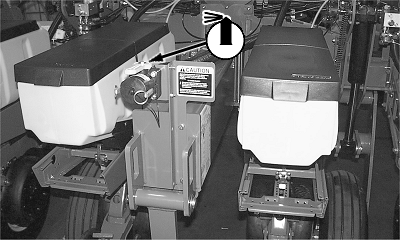

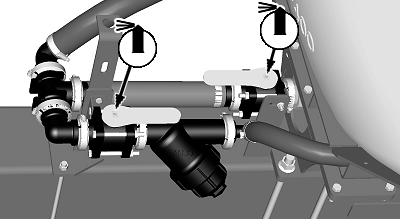

Fertilizer Shut Off Valves
|
Quick-Fill Valve
|

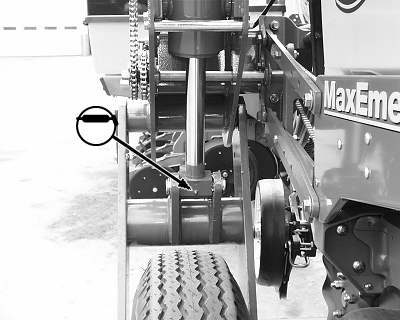

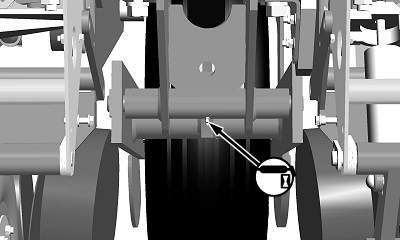

Gauge Wheels
|

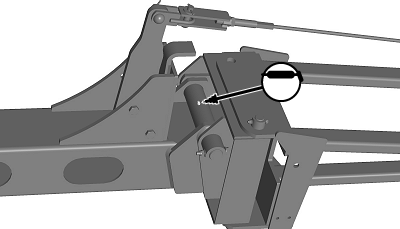

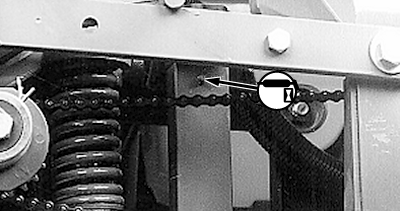

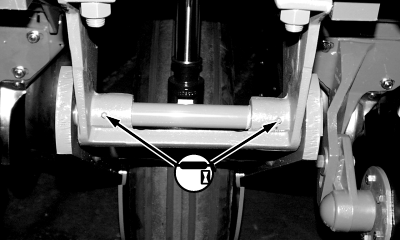

12 and 16 Row Wing Flex Joints
|

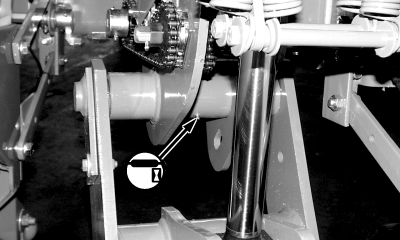

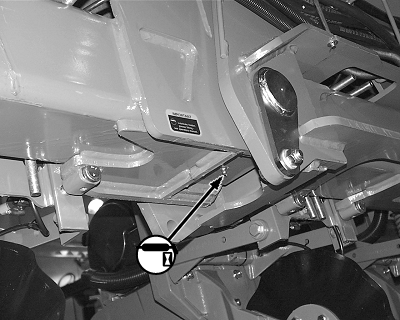

24 Row Wing Flex Point
|
24 Row (Smear A Small Amount Of Grease)
|
|
|
OUO6045,0000156 -19-01JUN09-6/17
|
12 and 16 Row Marker Pivot and Control Strap
|
Grease marker pivots and control straps with marker extended and blade slightly off the ground. Marker remains slightly elevated.
|
|
|
|
OUO6045,0000156 -19-01JUN09-7/17
|
Marker Pivot Pin
|

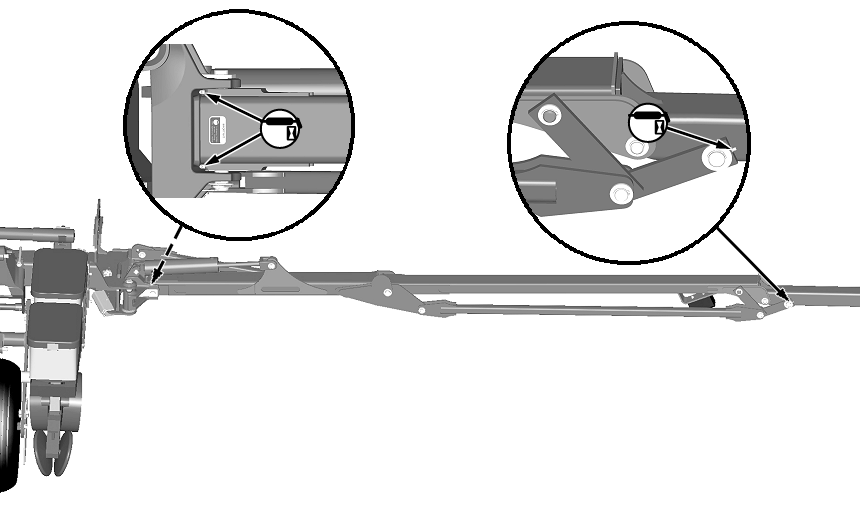

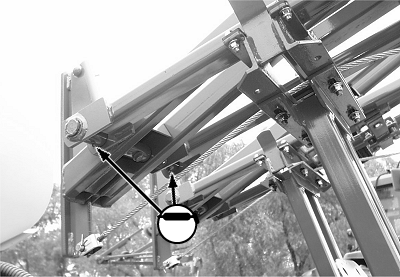

24 Row Marker
|
24 Row Marker
|
24 Row Marker
|
|
|
OUO6045,0000156 -19-01JUN09-8/17
|

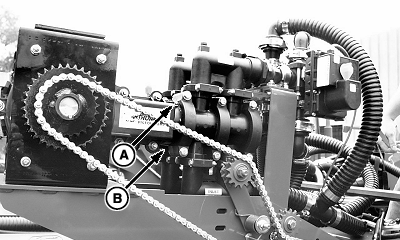

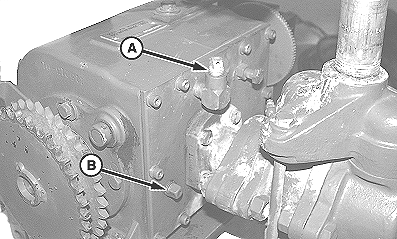

John Blue Pump System
1.
Lower machine to plant position before checking oil level.
2.
Remove vent plug (A) and check plug (B).
3.
Fill crankcase with TY6296 SAE 80W90 GL-5 gear lube or equivalent through vent port until lube is level with check port.
4.
Install plugs.
5.
Repeat on second pump.
A-Vent Plug
B-Check Plug
|
Variable Rate John Blue Pump
Fixed Rate John Blue Piston Pump
|
|
|
OUO6045,0000156 -19-01JUN09-9/17
|

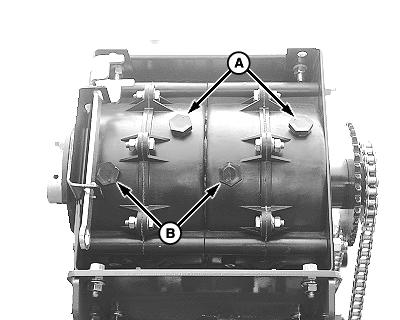

Demco Pump System
1.
Lower machine into plant position before checking oil level.
2.
Remove fill plugs (A) and check plugs (B) from both pump crankcases.
3.
Fill each crankcase with SAE 30 TY22070 Torq-Gard Supreme
™
engine oil or equivalent at fill ports until oil is level with check ports.
4.
Install plugs.
A-Fill Plugs
B-Check Plugs
|
24 Row Fixed Rate Pump
|
|
Torq-Gard Supreme is a trademark of Deere & Company
|
OUO6045,0000156 -19-01JUN09-10/17
|

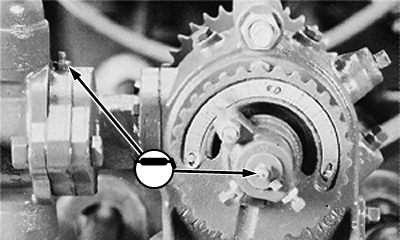

12 and 16 Row Piston Pump Shafts
|
24 Row Variable Rate Pump Shafts
|
|
Cover weep hole (B) tightly with your finger. Pump grease into fitting (A) until the pressure pushes the grease past your finger. Repeat on other pump.
A-Grease Fitting
B-Weep Hole
|
24 Row Fixed Rate Pump Shafts
|
|
|
OUO6045,0000156 -19-01JUN09-11/17
|
Wing-Wheel Modules, 12 Row
|
Wing-Wheel Modules, 16 Row
|
Wing Wheel Module, 24 Row
|

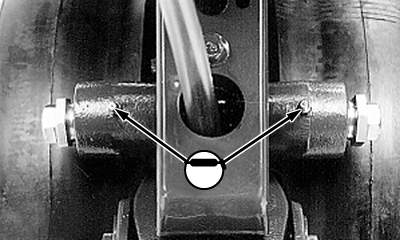

Wing Wheel Bearings
|
|
|
OUO6045,0000156 -19-01JUN09-12/17
|

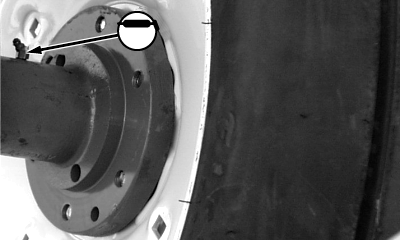

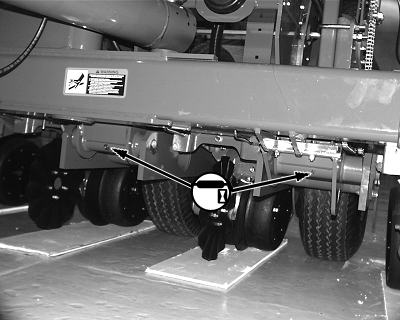

12 and 16 Row Main Frame Wheel Module
|
12 and 16 Row Main Frame Wheel Modules
|
Main Frame Wheel Module
|

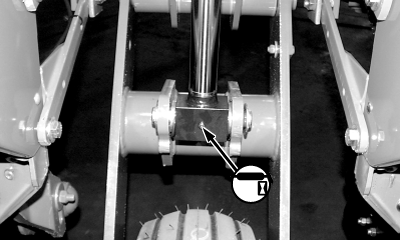

Main Frame Cylinder, Rod End
|
|
|
OUO6045,0000156 -19-01JUN09-13/17
|

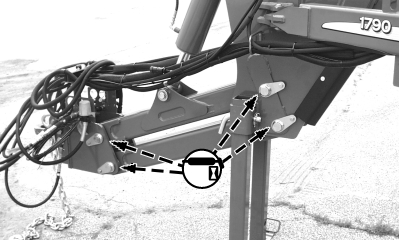

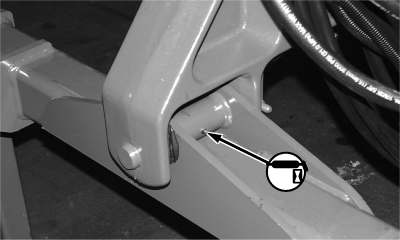

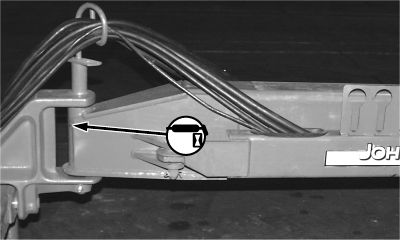

Hitch Pivot
|
12 and 16 Row Hitch Pivot
|

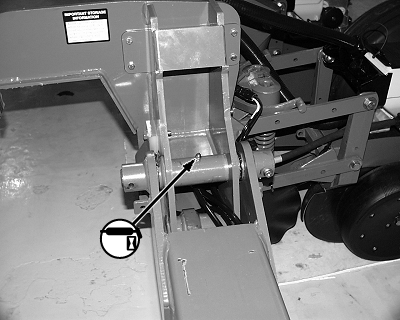

Drawbar Hitch
|

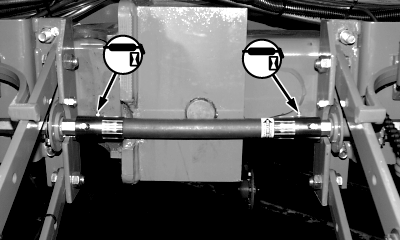

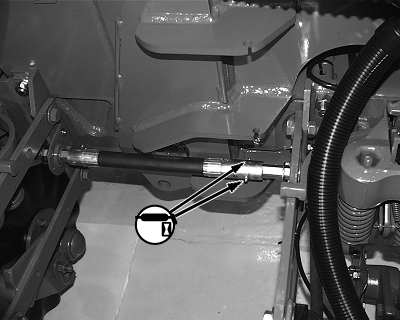

12 and 16 Row Flex Shaft
|
|
|
OUO6045,0000156 -19-01JUN09-14/17
|

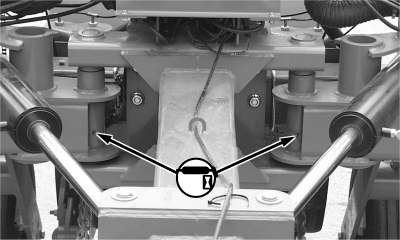

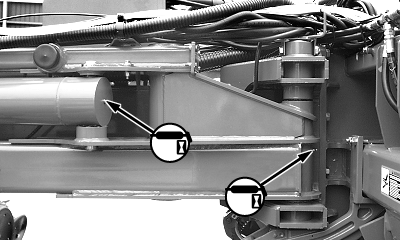

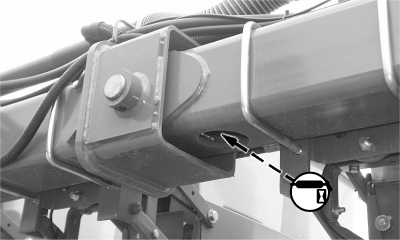

12 and 16 Row Fold Joints
|

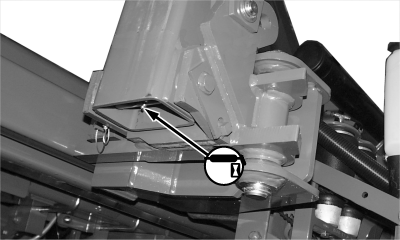

24 Row Fold Joints
|
12 and 16 Row Frame Mounted Coulter
|

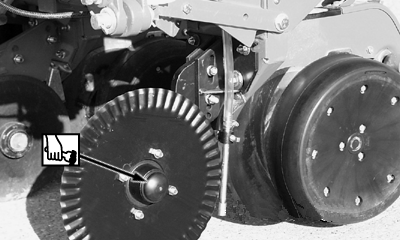

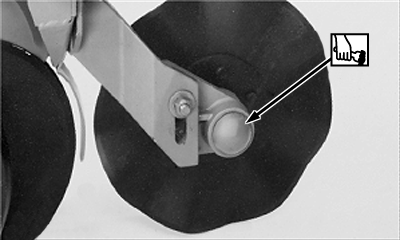

Unit Mounted Coulter
|
|
These bearings are packed with grease at the factory. Every 100 hours, inspect bearing and adjust if necessary. Every 200 hours or before each planting
|
season, whichever comes first, disassemble bearing, clean, and repack. See COULTER MAINTENANCE in Service and Adjustment section.
|
|
|
OUO6045,0000156 -19-01JUN09-15/17
|

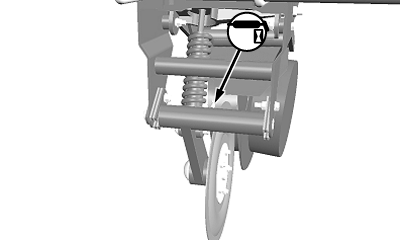

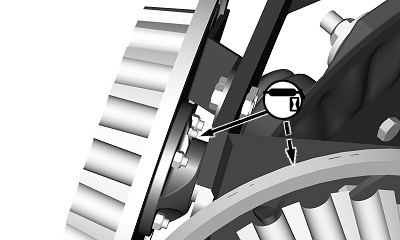

Unit Mounted Row Cleaner Adjustment Arm
|
Row Cleaner for Unit Mounted Coulter
|
|
Row cleaner has sealed bearings from factory and lubrication is not required. Apply a few pumps of grease to lube fitting every 200 hours until a slight resistance is felt. If a non-sealed bearing is installed, use 50 hour lubrication interval.
|
View From Under Unit Mounted Row Cleaner
|
|
|
OUO6045,0000156 -19-01JUN09-16/17
|

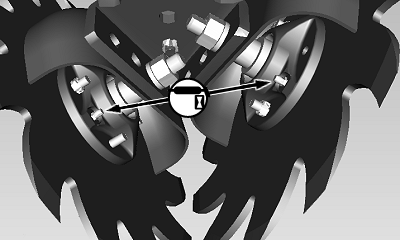

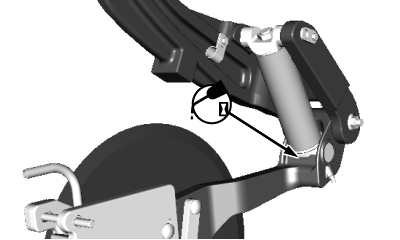

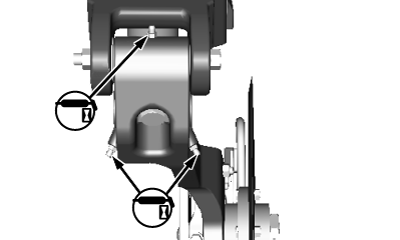

Unit Mounted Single-Disk Fertilizer Opener
|
Single-Disk Fertilizer Opener
|
24 Row Frame Mounted Fertilizer Opener
|

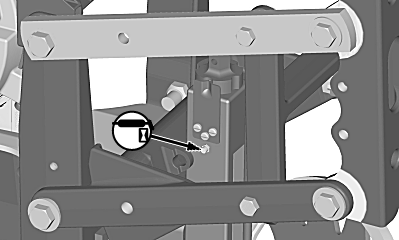

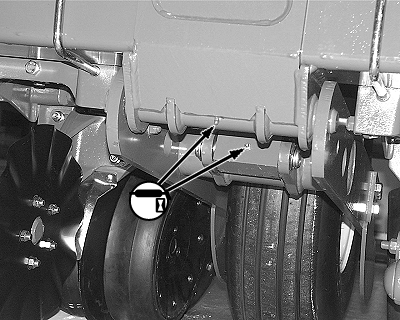

24 Row Tillage Support Bracket
|
|
|
OUO6045,0000156 -19-01JUN09-17/17
|
|
