Adjust Wing Frame Height

IMPORTANT: Perform all frame height adjustments with machine on level ground.

NOTE: Soil conditions effect frame height. It is normal for wing wheels to be adjusted differently than the centerframe wheels due to varying attachments and frame configurations.

1. Fold machine to latch wing frames; raise wing wheels approximately 152 mm (6 in.) off ground. See FOLD MACHINE in Operate section.

2. Position wheel hubs so bottom of wing frame is 510 to 560 mm (20 to 22 in.) off the ground. Location (A) is for normal conditions. Location (B) raises frame two inches for softer soil conditions.

3. Tighten wheel hub cap screws to specification.

Specification

Wing Wheel Cap Screws -Torque 447 N·m (330 lb.-ft.)

4. Repeat for adjacent wheels.

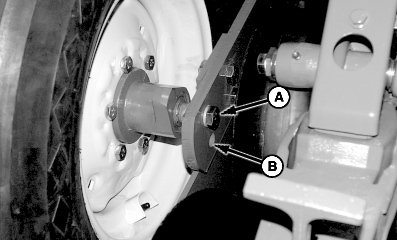

A47889

Wing Wheel Shown


A-Wheel Hub Location (Normal Conditions)
B-Wheel Hub Location (Raise Frame)
