Set John Blue™ Fixed And Variable Rate Pump Drive Range

IMPORTANT: Avoid pump damage. Remove drive chain from piston pump when fertilizer system is not in use.

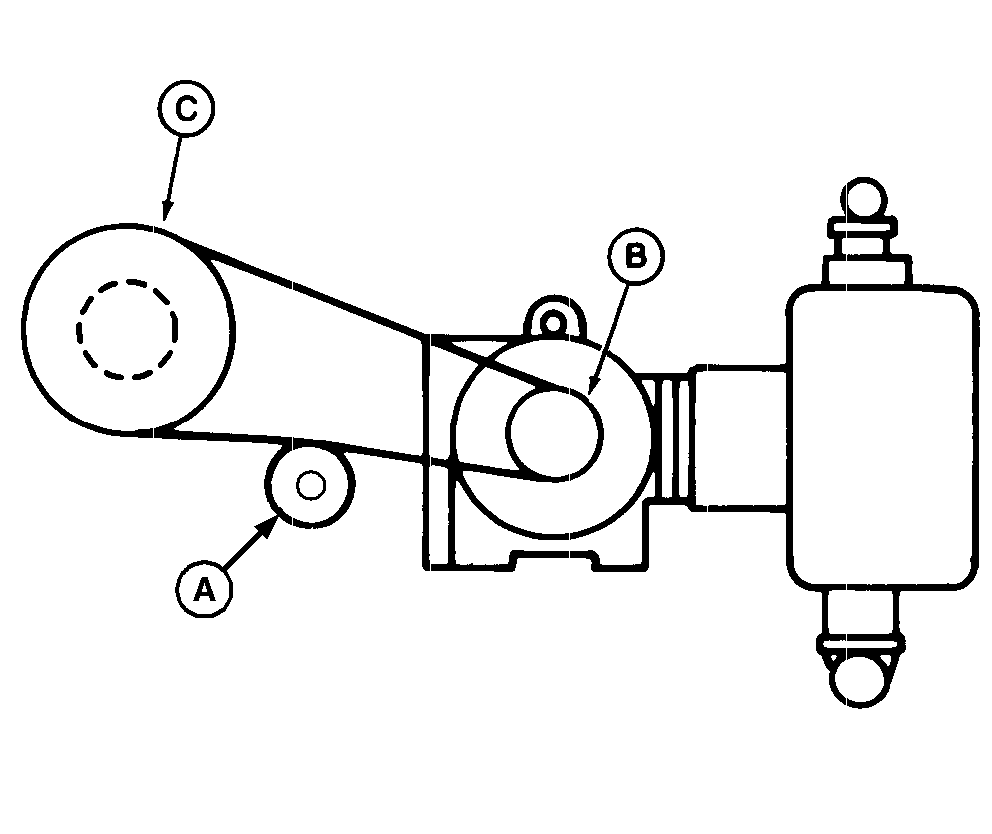

HIGH DRIVE RANGE:

Release tension on chain by pulling back on tensioner (A). Install chain on 16-tooth pump sprocket (B) and on 35-tooth drive sprocket (C) then release tensioner.

A-Tensioner
B-16-Tooth Sprocket
C-35-Tooth Sprocket

High Drive Range

OUO6074,0000E73 -19-22MAY09-1/2

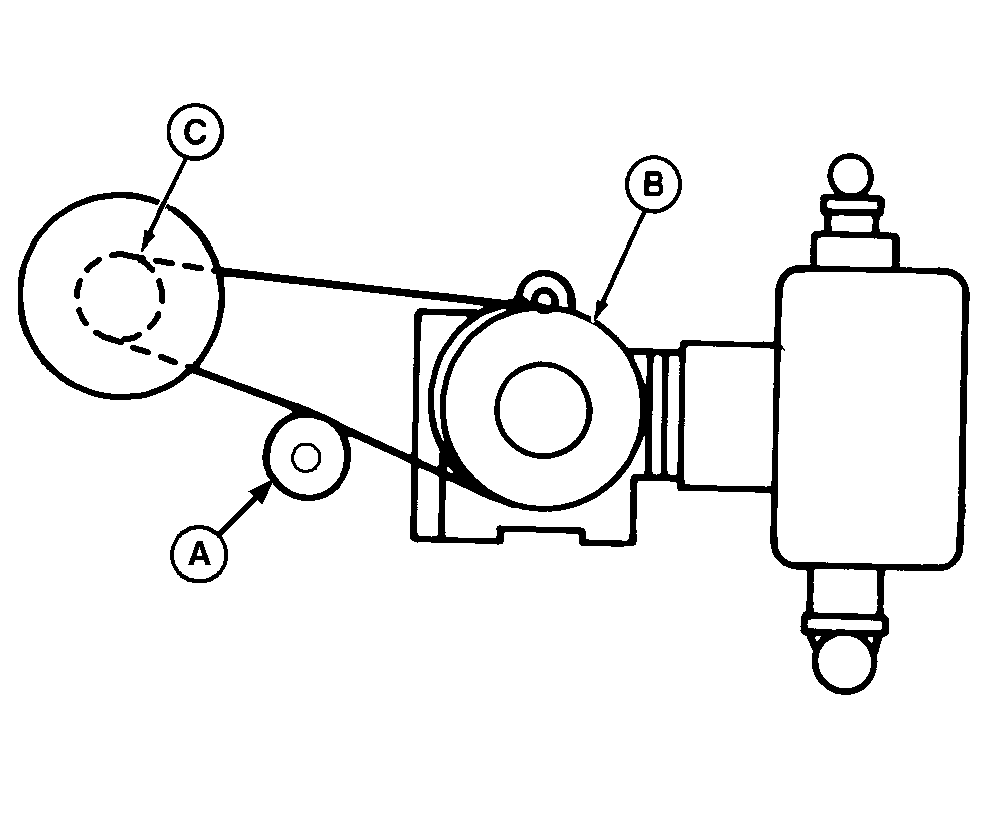

LOW DRIVE RANGE:

Release tension on chain by pulling back on tensioner (A). Install chain on 35-tooth pump sprocket (B) and on 16-tooth drive sprocket (C) then release tensioner.

A-Tensioner
B-35-Tooth Sprocket
C-16-Tooth Sprocket

Low Drive Range

OUO6074,0000E73 -19-22MAY09-2/2
