MaxEmerge™XP 106 L (3.0 Bu) Hopper Latch

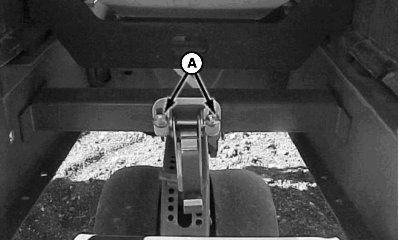

Check latches on 106 L (3.0 bu) hoppers to make sure they latch tight. If latches are loose, loosen latch cap screws (A) and adjust latch.


A-Cap Screws

A48635

106 L (3.0 bu) Hopper Latch

OUO6435,0001B6E -19-26MAY09-1/1
