Attach Drawbar Hitch Machine to Tractor

causym CAUTION: See Transport Safely, Observe Maximum Transport Speed, Use a Safety Chain, and Tow Loads Safely information in Safety section before machine transport.

NOTE: It can be necessary to connect hydraulic hoses and move hitch into position.

1. Back tractor to hitch.

OUO6435,0001BAC -19-22MAY09-1/5

IMPORTANT: Fan motor case drain hose must be attached to low-pressure drain connection before inlet and return hoses are connected. Case drain must have LESS THAN 172 kPa (1.72 bar) (25 psi) or fan motor damage occurs.

IMPORTANT: Install a Low-Pressure Drain Line Kit when towing tractor is not equipped.

IMPORTANT: Do not use other ports at the rear of the tractor which are similar in appearance and size to low-pressure drain port. Due to high backpressure (over 172 kPa 1.72 bar] [25 psi]), drain connection to these ports result in fan motor damage.

2. Attach case drain hose (A) to tractor low-pressure drain coupler (B).


A-Case Drain Hose
B-Low-Pressure Drain Coupler

A53393

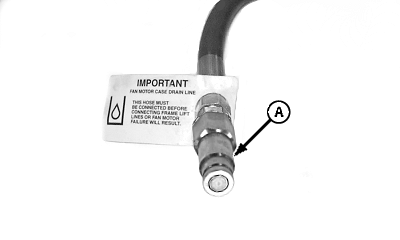

Flush Face Case Drain Tip

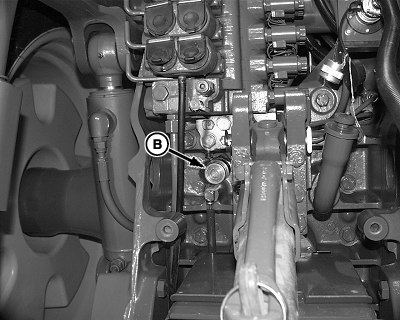

A53855

8000 Series Tractor Shown

OUO6435,0001BAC -19-22MAY09-2/5

IMPORTANT: Check tractor hydraulic oil level after filling cylinders with oil for the first time.

IMPORTANT: It is important to rephase hydraulic lift system before operating any other functions.

NOTE: When machine is equipped with drawbar hitch and automatic markers, markers and hitch use the same hoses.

3. Attach drawbar hitch hoses (A) to tractor.

4. If necessary, raise or lower hitch to align with tractor drawbar.

To raise or lower drawbar hitch, proceed as follows:

a. Place DRAWBAR-HITCH control console switch in "Hitch" position.

b. Activate marker SCV to raise or lower drawbar hitch.

c. When hitch is in proper position, place MARKER-HITCH switch in "Marker" position.

A47128

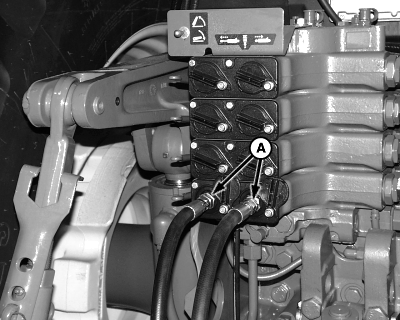

8000 Series Tractor Shown


A-Drawbar Hitch Hoses

OUO6435,0001BAC -19-22MAY09-3/5

A52383

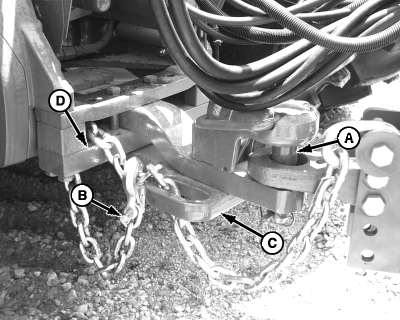

8000 Series Tractor Chain Routing
A60201

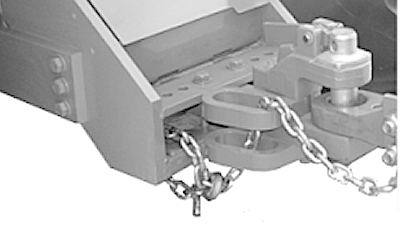

9000 Series Tractor Chain Routing

A61819

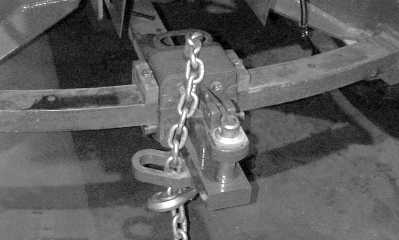

9000T Series Tractor Chain Routing
A52496

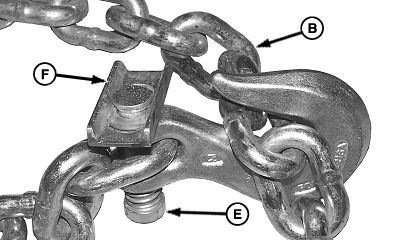

Safety Lock Open

5. Install drawbar pin (A) and secure.

6. Install safety chain (B) through loop (C) and drawbar support (D).

7. Press spring latch (E) and rotate safety lock (F) open.

8. Attach hook to chain between drawbar support (D) and loop (C).

9. Press spring latch (E) and rotate safety lock (F) into closed position.


A-Drawbar Pin
B-Safety Chain
C-Loop
D-Support
E-Spring Latch
F-Safety Lock

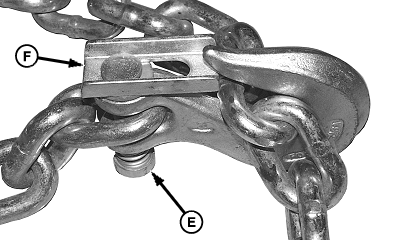

A52497

Safety Lock Closed

OUO6435,0001BAC -19-22MAY09-4/5

10. Raise hitch to remove weight from hitch stands (A).

11. Raise and secure hitch stands as shown.

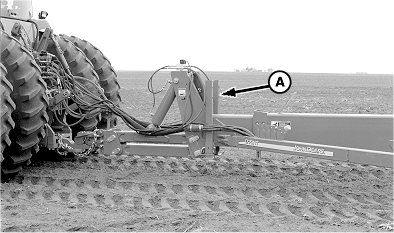

A-Hitch Stands

A62725
