Attach Two-Point Hitch Machine to Tractor

CAUTION: See Transport Safely, Observe Maximum Transport Speed, Use a Safety Chain, and Tow Loads Safely information in Safety section before machine transport.

1. Raise both latch control levers.

OUO6435,0001EC6 -19-22MAY09-1/4

CAUTION: When latches are properly locked, handles are horizontal and against coupler frame.

3. Raise the rockshaft enough to engage the machine hitch pins (A) in the Quik Tach™ hooks. Push both latch control levers (B) down to lock the machine to quik tach.

4. After attaching machine to tractor, raise 3-point hitch.

A-Machine Hitch Pins
B-Latch Control Levers

OUO6435,0001EC6 -19-22MAY09-2/4

IMPORTANT: Damage can occur to hitch stands and draft tubes while turning sharply. Remove hitch stands to avoid damage.

NOTE: When installing drilled pin (A), handle of pin goes toward front of machine.

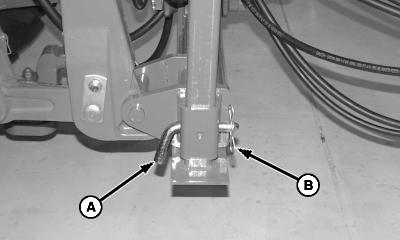

5. Raise and secure stands to hitch crossbar with drilled pin (A) and spring locking pin (B).

A-Drilled Pin
B-Spring Lock Pin

OUO6435,0001EC6 -19-22MAY09-3/4

IMPORTANT: Fan motor case drain hose must be attached to low-pressure drain connection before other hoses are connected. Case drain must have less than 172 kPa (1.72 bar) (25 psi) or fan motor damages occurs.

IMPORTANT: Install a Low-Pressure Drain Line Kit when towing tractor is not so equipped.

IMPORTANT: Do not use other ports at the rear of the tractor which are similar in appearance and size to low-pressure drain port. Due to high backpressure (over 172 kPa 1.72 bar] [25 psi]), drain connection to these ports results in fan motor damage.

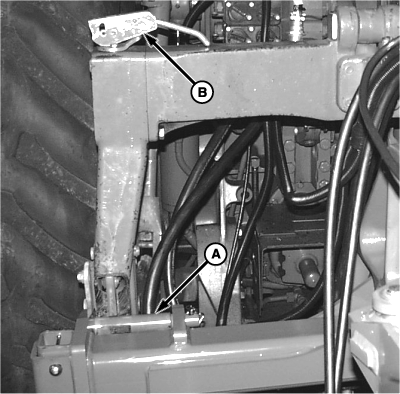

6. Route case drain hose (A) under Quik Tach™ and attach to tractor low-pressure drain coupler (B).

A-Case Drain Hose
B-Low-Pressure Drain Coupler

OUO6435,0001EC6 -19-22MAY09-4/4
