Frame Control Console

NOTE: The lights in the MARKERS switch only function when the PLANT-TRANS switch is in "Plant", the WINGLET switch is in the middle position and the MARKER MODE switch is in "Auto" or "Man".

Console switches operate solenoid hydraulic valves. Solenoid valves prevent a cylinder from operating unless valves are energized. All machine cylinders are connected to tractor SCVs through a solenoid valve block. Cylinders and functions are selected with the control-console switches and controlled with the tractor SCV.

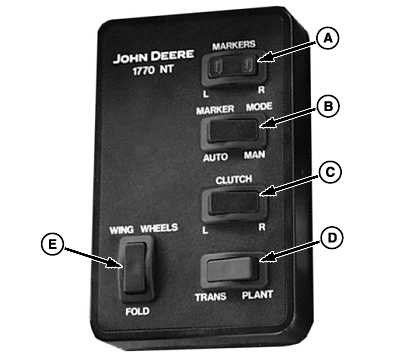

A -MARKERS switch controls individual marker use when MARKER MODE switch is in "Man" position.

B -MARKER MODE switch allows manual or automatic alternation of markers.

C -CLUTCH DISENGAGE switch disengages drive on either half of machine for planting point rows.

D -PLANT-TRANS switch allows machine to be raised or lowered without operating any switches when in "Plant" position. When in "Trans" position, it allows machine to fold and unfold, raise and lower wing wheels, and center wheels.

E -WING WHEELS-FOLD switch is used to fold and unfold or extend and retract wing wheels.

F -TANK LOW WARNING LIGHT-WINGLETS switch is used to switch from right-hand or left-hand winglet.

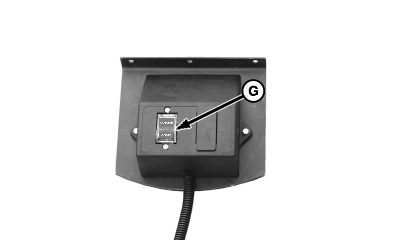

G -If equipped-DRAWBAR HITCH-MARKER switch alternates SCV control to either drawbar hitch or independent markers.

OUO6435,0001ECD -19-21MAY09-1/1
