Adjust 12 and 16 Row Marker Length

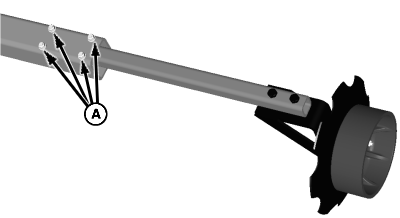

A51116


A-U bolts

B-Dimension



To adjust marker do the following:

  • Lower marker.
  • Loosen lock nuts on U bolts (A) on marker.
  • Adjust to length shown in table.
  • Dimension (B) is measured from the center line of the planting unit to the marker disk.
  • Tighten lock nuts on U bolts securely.
  • Dimension is approximate and must be checked in the field.

Machine Row Spacing Dimension "B"
12-Row 762 mm (30 in.) 4953 mm (195 in.)
16-Row 762 mm (30 in.) 6477 mm (255 in.)



Tighten lock nuts (A) to specification.

Specification

Lock Nut -Torque 95 N·m (70 lb.-ft.)

OUO6435,0001ED0 -19-22MAY09-1/2

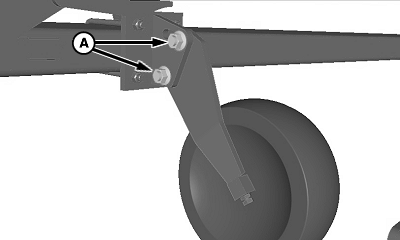

Loosen cap screws and nuts (A) and adjust marker gauge wheel (if equipped) so marker is level when going through field. Retighten cap screws and nuts.


A-Cap Screw and Nut (2 used)

A64419

OUO6435,0001ED0 -19-22MAY09-2/2
