Adjust 24 Row Contact Link Air Bag Pressure

CAUTION: Avoid serious injury from exploding parts. Lower machine into plant position before adjusting air bag pressure.

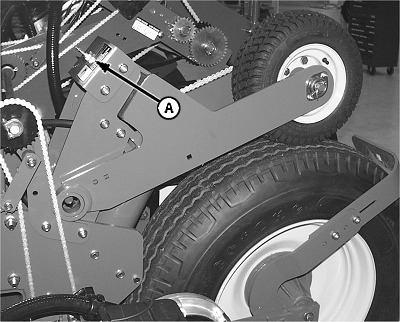

Lower machine into plant position and inflate contact link air bag (A) to pressure specification.

Specification

For best performance, ensure that the frame tire and the contact drive tire are inflated to the proper pressure.

A-Air Bag

OUO6435,0001EDB -19-22MAY09-1/1
