Adjust Tire Scraper

IMPORTANT: Load and tire air pressure effect distance between tire and scraper. Tire diameter can change as tire warms up during transport. Do not set scraper closer than the specification.

IMPORTANT: To prevent damage, tire scraper must be adjusted anytime frame height is changed.

1. Adjust tire to correct air pressure.

2. Loosen cap screws and nuts (A).

3. Adjust clearance between tire scraper (B) and tire to specification.

Specification

Scraper to Tire (Cold) -Clearance 6-10 mm (1/4-3/8 in.)


A-Cap Screws and Nuts
B-Tire Scraper

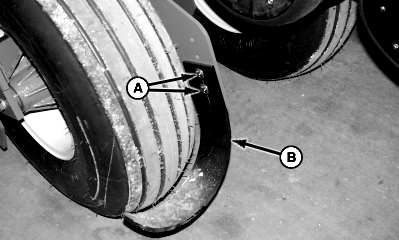

A49944

12 and 16 Row

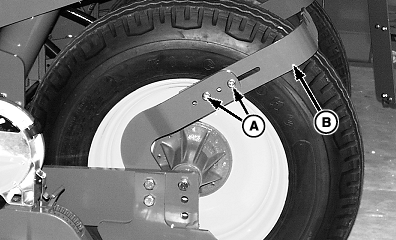

A53356

24 Row

OUO6435,0001EDD -19-26MAY09-1/1
