Unfold Machine

causym CAUTION: Verify everyone is clear of the machine.

Serious injury or death can result from contact with electric lines. Use care when moving or operating this machine near electric lines to avoid contact.

Use firm, level ground when possible to make unfolding easier. Tractor must be in "Neutral" to allow the tractor to roll slightly when unfolding.

1. If machine was stored for a period of time, raise machine up off of service locks.

OUO6435,0001EE0 -19-21MAY09-1/5

2. Remove service locks (A) from both outer main frame wheel cylinders.


A-Service Locks

A53394

12 and 16 Row Service Locks

A53401

24 Row Service Locks

OUO6435,0001EE0 -19-21MAY09-2/5

3. Place service locks (A) in their storage position. Main frame locks are stored on the warning light mounting brackets.


A-Service Lock

A48912

12 and 16 Row Service Lock Storage

A54351

24 Row Service Lock Storage

OUO6435,0001EE0 -19-21MAY09-3/5

4. Press the PLANT-TRANS switch to "Trans" position.

5. Place tractor in "Neutral".

IMPORTANT: Avoid damage to machine. Do not fully lower hitch while unfolding.

Hitch must be level to prevent damage while wing-wheels are being lowered.

6. TWO-POINT HITCH: Raise tractor rockshaft until hitch is level (half-raised position).

DRAWBAR HITCH: With MARKER-HITCH switch in "Hitch" position on drawbar hitch control console, activate marker SCV to raise hitch until level (half-raised position).

7. Press and hold WING WHEEL-FOLD switch in the "Wing Wheels" position. Activate SCV to lower wing wheels. (Center frame wheels lower from high lift position.)

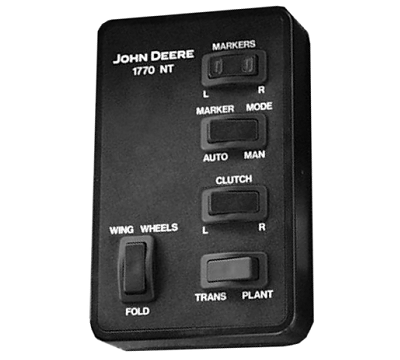

A53585

12 and 16 Row

A54115

24 Row

A52390

16 and 24 Row Drawbar Hitch Control Console

OUO6435,0001EE0 -19-21MAY09-4/5

IMPORTANT: Avoid machine damage. Adjust hitch height to minimize distance between latch hooks (A) and hitch tube (B).

8. Lower hitch until latches (A) clear hitch tube (B).

IMPORTANT: Avoid damage to fertilizer openers. Minimize distance between latch hooks (A) and hitch tube (B).

9. Press and hold the WING WHEELS-FOLD switch in the "Fold" position. Activate SCV lever to unfold machine.

10. Press the PLANT-TRANS switch to "Plant".

IMPORTANT: Avoid machine damage. Adjust hitch so frame or openers do not contact anything during unfolding.

11. Lower frame and hitch simultaneously, keeping hitch level until machine is lowered.

12. Select "Auto" or "Man" on the MARKER MODE switch.

A48974


A-Latches
B-Hitch Tube

OUO6435,0001EE0 -19-21MAY09-5/5
