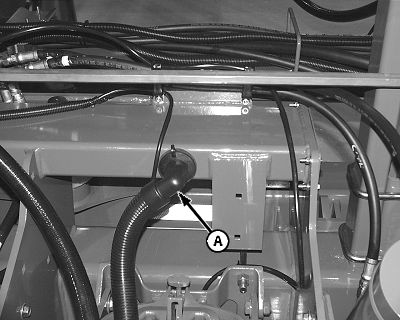

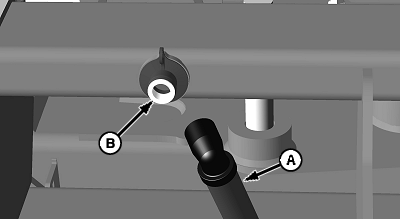

24 Row Vacuum Manifold Tube Orifice PlacementRemove vacuum hoses (A) from manifold tubes on rows 9, 10, 11, 12, 13, 14, 15 and 16. Yellow orifices (B) are installed in manifold fittings.

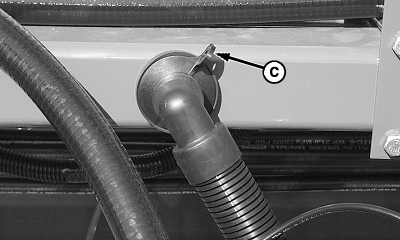

Tab (C) must be turned at a 45 degree angle when installed to hold coupler in frame.
|
|
|||||||||
OUO6435,0001EF9 -19-22MAY09-1/1 |
