Replace 12 and 16 Row Marker Breakaway Bolt

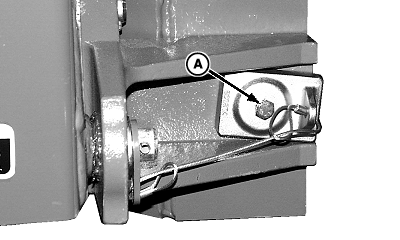

The marker breakaway bolt (A) provides protection from machine damage if marker hits an obstacle.

To replace breakaway bolt, proceed as follows:


A-Breakaway Bolt

A53162

OUO6435,0001EFC -19-26MAY09-1/2

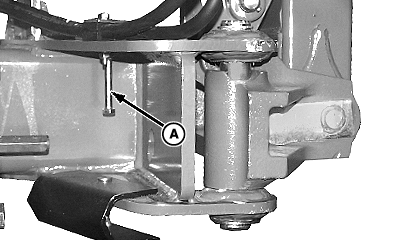

NOTE: Extra shear bolts (A) are located on the inside of each marker casting.

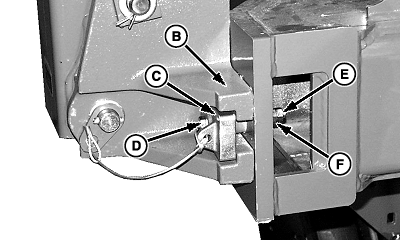

Return marker arm (B) to operating position, install spacer (C) and insert breakaway bolt (D) through hole in machine frame.

Tighten breakaway bolt with nut (E) to specification and secure with jam nut (F).

Specification

Nut (E) -Torque 81 N·m (60 lb.-ft.)


A-Extra Shear Bolts
B-Marker Arm
C-Spacer
D-Breakaway Bolt
E-Nut
F-Jam Nut

A53163
A53164
