Adjust 12 and 16 Row Marker Alternating Switch

NOTE: Marker alternating switch is mounted behind the inner right-hand wing wheel lift cylinder.

1. In plant position, raise machine to field raise position.

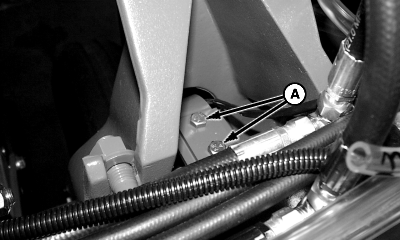

2. Loosen cap screws (A).

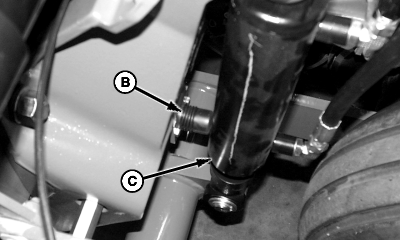

3. Slide marker alternating switch (B) toward cylinder (C) until switch clicks.

4. Tighten bolts (A).

A-Cap Screws
B-Marker Alternating Switch
C-Cylinder
