Adjust 24 Row Marker Winglet Switch
1.

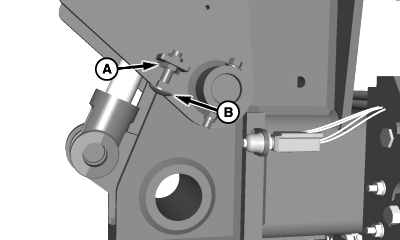

With planter winglet raised, loosen jam nuts (A) and turn round head bolt (B) in, toward marker wing, five complete revolutions. This allows winglet to lower before round head bolt contacts switch.
2.
Lower winglet completely.
A-Jam Nut (2 used)
B-Round Head Bolt
|
|
|
|
OUO6435,0001EFF -19-26MAY09-1/3
|
|
3.

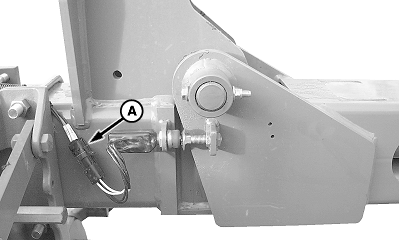

Disconnect connector (A).
A-Connector
|
|
|
|
OUO6435,0001EFF -19-26MAY09-2/3
|
|
4.

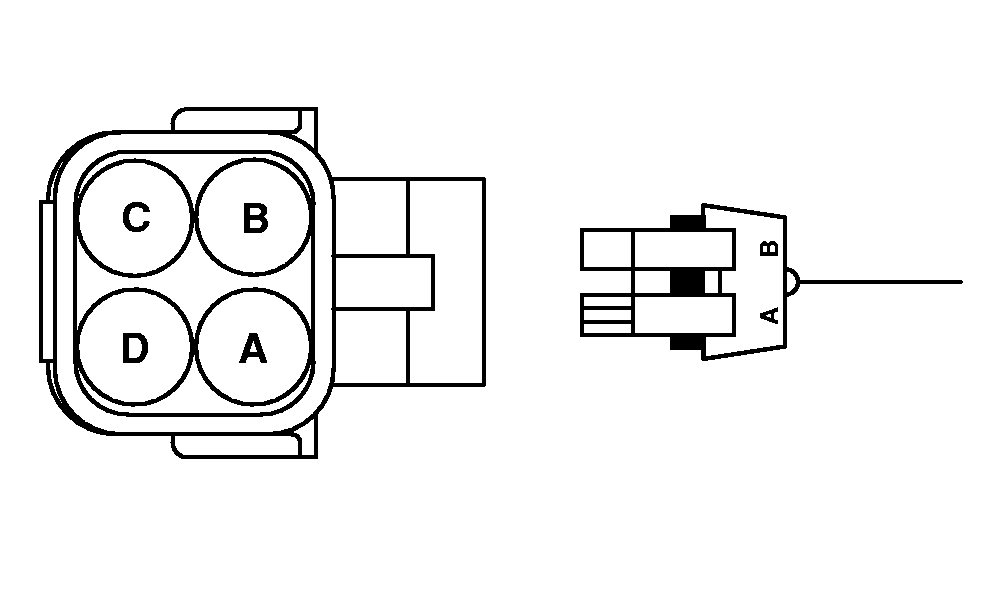

Connect ohmmeter to pins (A and D) or pins (B and C).
5.
Turn round head bolt towards switch until there is a change in resistance, open or closed circuit.
6.
Turn round head bolt in an additional 1/2 turn and tighten jam nuts.
|
|
|
|
