Tighten 24 Row Center Frame Trunnion Blocks

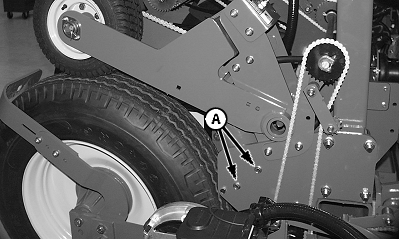

A54111

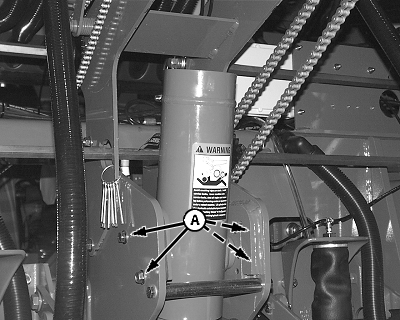

A54112


A-Cap Screws



1. Raise machine into field raised or road transport position.

2. Tighten trunnion cap screws (A) on both sides of each center frame lift cylinder to specification.

Specification

Trunnion Cap Screws -Torque 142 N·m (105 lb.-ft.)

OUO6435,0001F00 -19-26MAY09-1/1
