Removing From Storage

If machine is in the folded transport position and service locks were installed, raise machine up off of service locks.

Remove service locks (A) from both outer main frame wheel cylinders.

A-Service Locks

OUO6435,0001F06 -19-17JAN06-1/5

Place service locks (A) in the storage position. Main frame locks are stored on the warning light mounting brackets.

Before using machine after it has been stored, inspect seed hoppers for cleanliness to be certain seed will flow from hoppers freely.

Thoroughly inspect machine for loose parts and adjust as necessary.

A-Service Lock

OUO6435,0001F06 -19-17JAN06-2/5

IMPORTANT: High pressure washers can damage electrical components, bearings, hoses and/or hoppers if direct contact is applied. Use caution, if power washing machine.

Clean any dirt or grease that may have accumulated on moving parts, gears and chains before operating machine. This will prevent abrasive action that could cause excessive wear.

When roller chains remain unused for several days, moisture in the air will accumulate on chain, causing chain to rust. This can and will become serious enough in time to cause the chain joints to become stiff, restricting their normal free movement. While very difficult to detect, this stiffness can cause the chains to operate abnormally and disturb the smooth rotation of important meter components causing deterioration in performance.

IMPORTANT: Do not use chain lube or any other heavy petroleum base lubricant that may cause a buildup of dust or dirt in the sprocket or gear teeth.

If machine is not used for several days or if lube has been removed from chains while cleaning the machine, thoroughly lubricate chains with John Deere Multipurpose Spray Lube TY6350.

OUO6435,0001F06 -19-17JAN06-3/5

The pesticide drive chain (A), seed meter drive chain (B), pesticide drive sprocket (C) and gears must have adequate lubrication.

When lubricating pesticide drive gears, move drive disconnect knob (D) back and forth while spraying to help loosen any paint or dirt buildup and allow gears to turn freely.

The meter drive shaft and seed meter should turn freely by hand. Rotate drive shaft forward only, as assemblies are not designed to rotate in reverse.

Adjust machine for planting conditions to be encountered.

A-Pesticide Drive Chain
B-Seed Meter Drive Chain
C-Pesticide Drive Sprocket
D-Drive Disconnect Knob

OUO6435,0001F06 -19-17JAN06-4/5

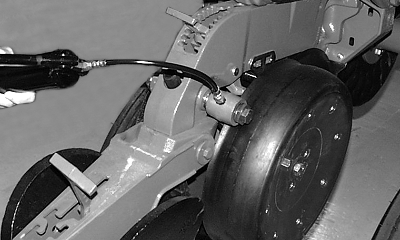

Lubricate planting units as outlined in the Lubrication section.

OUO6435,0001F06 -19-17JAN06-5/5
