Level Two-Point Hitch Machine

Periodically check that hitch tube (A) and planting unit frames (B) are parallel to the ground during operation.

NOTE: Adjustments are more accurate when performed in field conditions.

NOTE: If center frame of machine is higher or lower than wings, rephase hydraulic lift system. Lower machine and hold SCV lever for several seconds to rephase.

1. Set any adjustable down force system to zero pressure.

2. Lower machine on level ground.

3. Adjust rockshaft until hitch tube is parallel to the ground.

4. With machine in planting position and adjustable down force systems set to zero pressure, check clearance from bottom of main frame tube to the ground. If frame is not 510-560 mm (20-22 in.) above ground, see ADJUST FRAME HEIGHT in Service and Adjustment section before continuing this procedure.

5. Raise and lower machine.

6. Adjust rockshaft until hitch tube is parallel to the ground.

A50342
A54009

MAXEMERGE™XP Row Unit


A-Hitch
B-Planting Unit

OUO6435,0001F10 -19-22MAY09-1/3

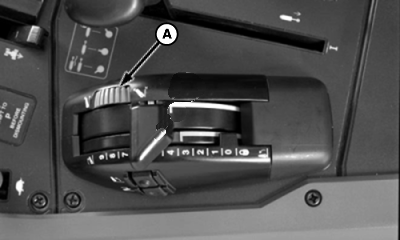

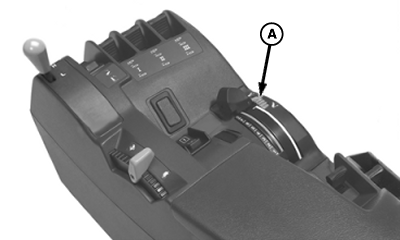

7. Set rockshaft adjustable depth stop (A) to control or limit rockshaft movement during operating so hitch remains parallel to ground. Refer to tractor Operators Manual for additional information.


A-Depth Stop

A47802

7000 Tractor

A47803

8000 Tractor

OUO6435,0001F10 -19-22MAY09-2/3

8. During operation, parallel arms (A) are parallel to the ground or angle slightly upward toward frame.

If center frame of machine becomes higher or lower than wings during operation, rephase hydraulic lift system.


A-Parallel Arms

A54010

MaxEmerge XP Unit

OUO6435,0001F10 -19-22MAY09-3/3
